Additional information
| Weight | 0.472 kg |
|---|---|
| Dimensions | 13 × 12 × 11 cm |
| Brand Name | VIKYLIN |
| Zoom type | None |
| Megapixels | 8MP |
| Whether or Not 50Vac or 75Vdc or Higher Power Supply | No |
| Zoom | NONE |
| Origin | Mainland China |
| High Definition | 8.0 Megapixels |
| High-concerned chemical | None |
| Lens Quantity | Single Lens |
| Supported Operating Systems | Windows XP, Windows 7, macOS, Windows 10 |
| Lens (mm) | 2.8mm |
| Power Supply | With Poe |
| Style | Turret Camera |
| Connectivity | IP/Network Wired |
| Installation | ceiling |
| Minimum Illumination(Lux) | Color: 0.01 Lux @(F1.0, AGC ON), 0 Lux with Light |
| Scene | Indoor and outdoor |
| Color Night Vision | Yes |
| Special Features | Waterproof / Weatherproof |
| Internal Storage | None |
| Video Compression Format | H.264, H.265 |
| Alarm Type | Local Alarm |
| Shell Material | Metal |
| Color | WHITE |
| Power Mode | Mains Electricity |
| is_customized | Yes |
| Model Number | A83 |
| Supported Mobile Systems | Android, iOS |
| Optical Zoom | NONE |
| AI Functions | Motion Detection |
| IP Rating | IP67 |
| TF Card | None |
| Power Supply(V) | 12V |
| Sensor | CMOS |
| Operating Temperature | -20°-60° |
| Power Source | With Poe, Mains Electricity |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.0), 0 lux with warm light |
| Shutter Time | 1/10 s to 1/10, 000 s |

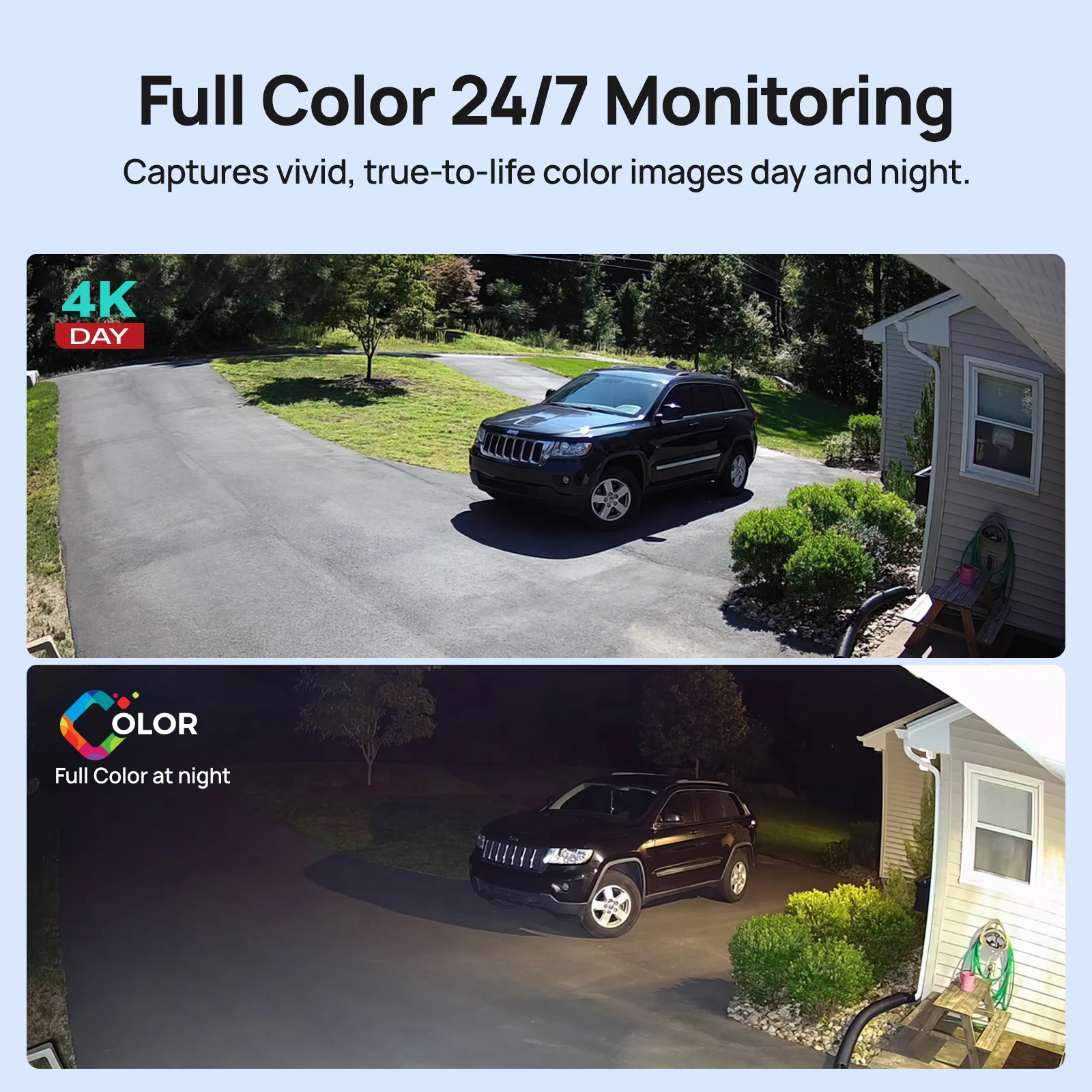

| Day & Night | 24/7 Color imaging |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127° |
| Aperture | F1.0 |
| Iris Type | Fixed |
| Lens Mount | M12 |
| DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m |
| Supplement Light Type | Warm Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wave length | 850 nm |
| Image Settings | Brightness, saturation, contrast, rotate mode, white balance, BLC, HLC, 3D DNR, WDR adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Privacy Mask | 4 programmable polygon privacy masks |
| Max. Resolution | 3840 * 2160 |
| Main Stream | 50 Hz: 20fps@3840 * 2160, 25fps@3072 * 3048, 30fps@(2592 * 1944, 2560 * 1440, 2304 * 1296, 1920 * 1080, 1280 * 720) 60 Hz: 20fps@3840 * 2160, 25fps@3072 * 3048, 30fps@(2592 * 1944, 2560 * 1440, 2304 * 1296, 1920 * 1080, 1280 * 720) |
| Sub-Stream | 50 Hz: 30 fps@(720 * 480, 640 * 480, 640 * 360, 480 * 360, CIF ) 60 Hz: 30 fps@(720 * 480, 640 * 480, 640 * 360, 480 * 360, CIF ) |
| Video Compression | Main stream: H.265+/H.265/H.264 Sub-stream: H.265+/H.265/H.264 |
| Video Bit Rate | 64 Kbps to 12 Mbps |
| H.264 Type | Base Profile, Main Profile, High Profile |
| H.265 Type | Base Profile, Main Profile, High Profile |
| Bit Rate Control | CBR, VBR |
| Audio Compression | G.711U/G.711A/AAC |
| Protocols | TCP/IP, DHCP, DNS, HTTP, ONVIF, RTP, RTSP, NTP, UDP, FTP, SMTP |
| User/Host | Up to 10 users 3 user levels: administrator, operator, and user |
| Client | AjDevtools, LMS, Videolink |
| Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Microsoft Edge |
| Language | English, Russian, German, Italian, Turkish, Korean, Traditional Chinese, Simplified Chinese, Ukrainian |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| On-Board Storage | Yes, up to 512 GB |
| Reset Key | Yes |
| Basic Event | Motion detection |
| Smart Event | Human & Vehicle detection |
| Linkage | Upload to FTP/memory card, send email, trigger recording, trigger capture |
| Material | Metal & Plastic |

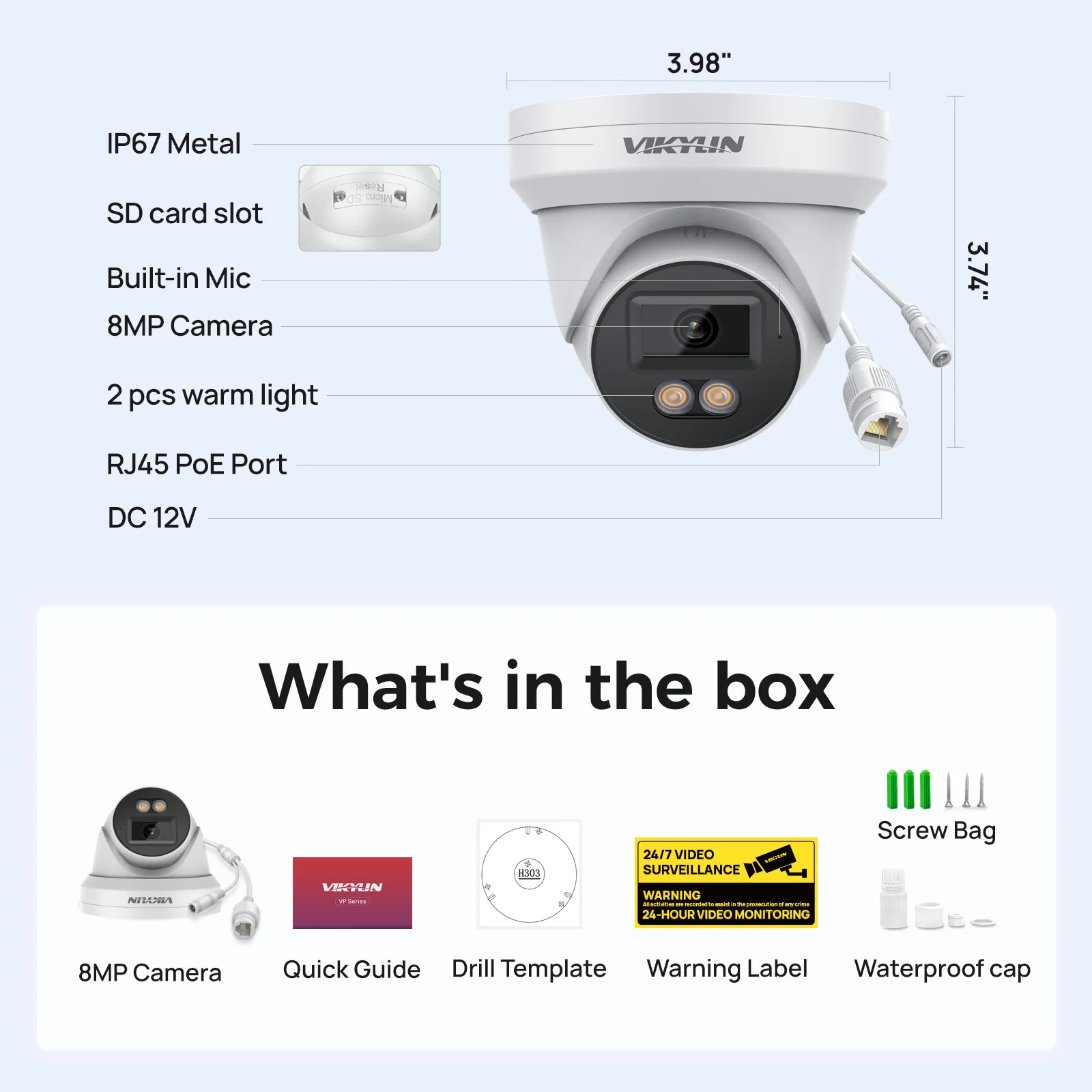

| Dimension | Camera: 110 mm * 100 mm (4.33" * 3.94") With Package: 117 mm * 117 mm * 117 mm (4.61" * 4.61" *4.61") |
| Weight | Camera: Approx. 365g (0.80 lb.) With Package: Approx. 465 g (1.03 lb.) |
| Storage Conditions | -30 °C to 85 °C (-22 °F to 185 °F). Humidity 95% or less (non-condensing) |
| Operating Conditions | -30 °C to 85 °C (-22 °F to 185 °F). Humidity 95% or less (non-condensing) |
| Protection | IP67 |
| application scenario1 | camera security poe |
| application scenario2 | security protection |
| application scenario3 | cctv camera outdoor |
| application scenario4 | camera poe |
| application scenario5 | Home CCTV |
| application scenario6 | Outdoor surveillance camera |
| Choice | yes |
