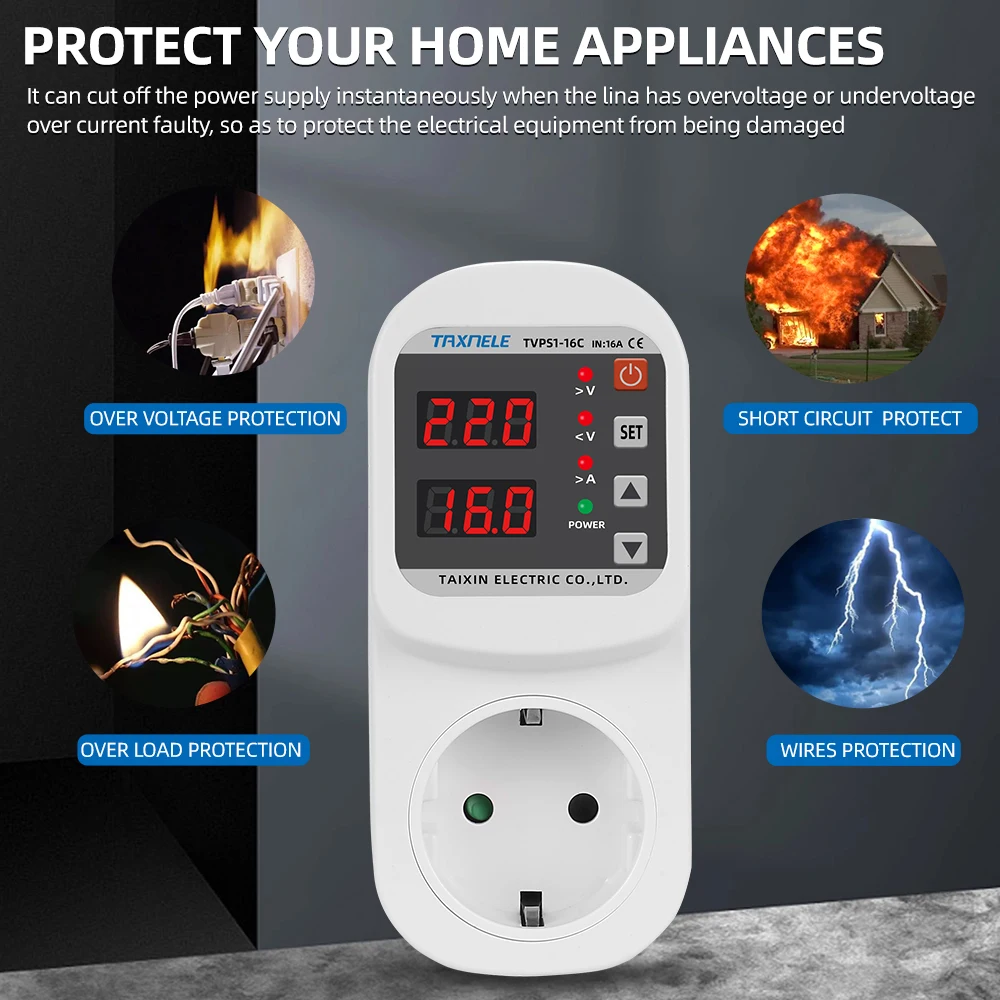

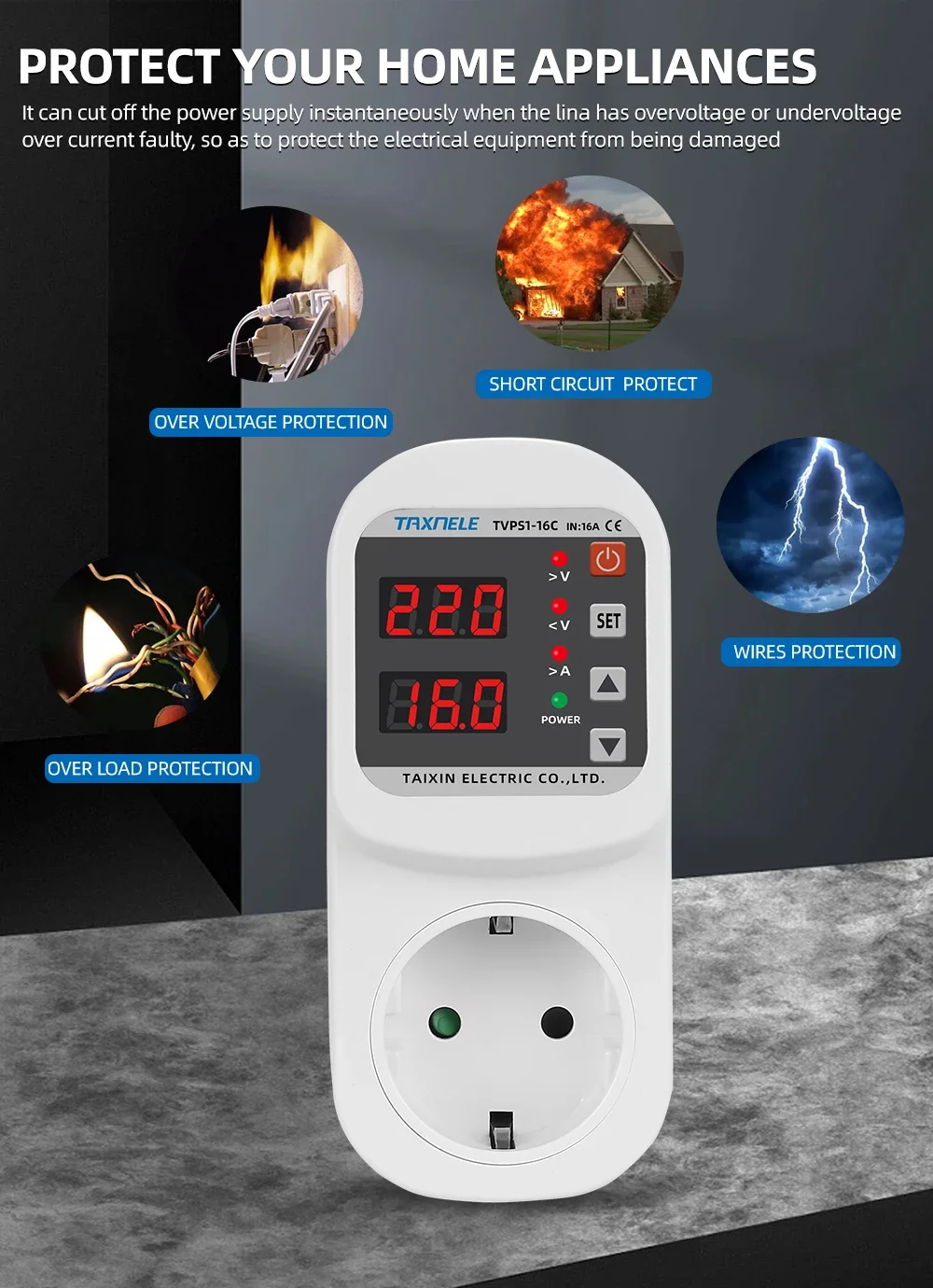

Description

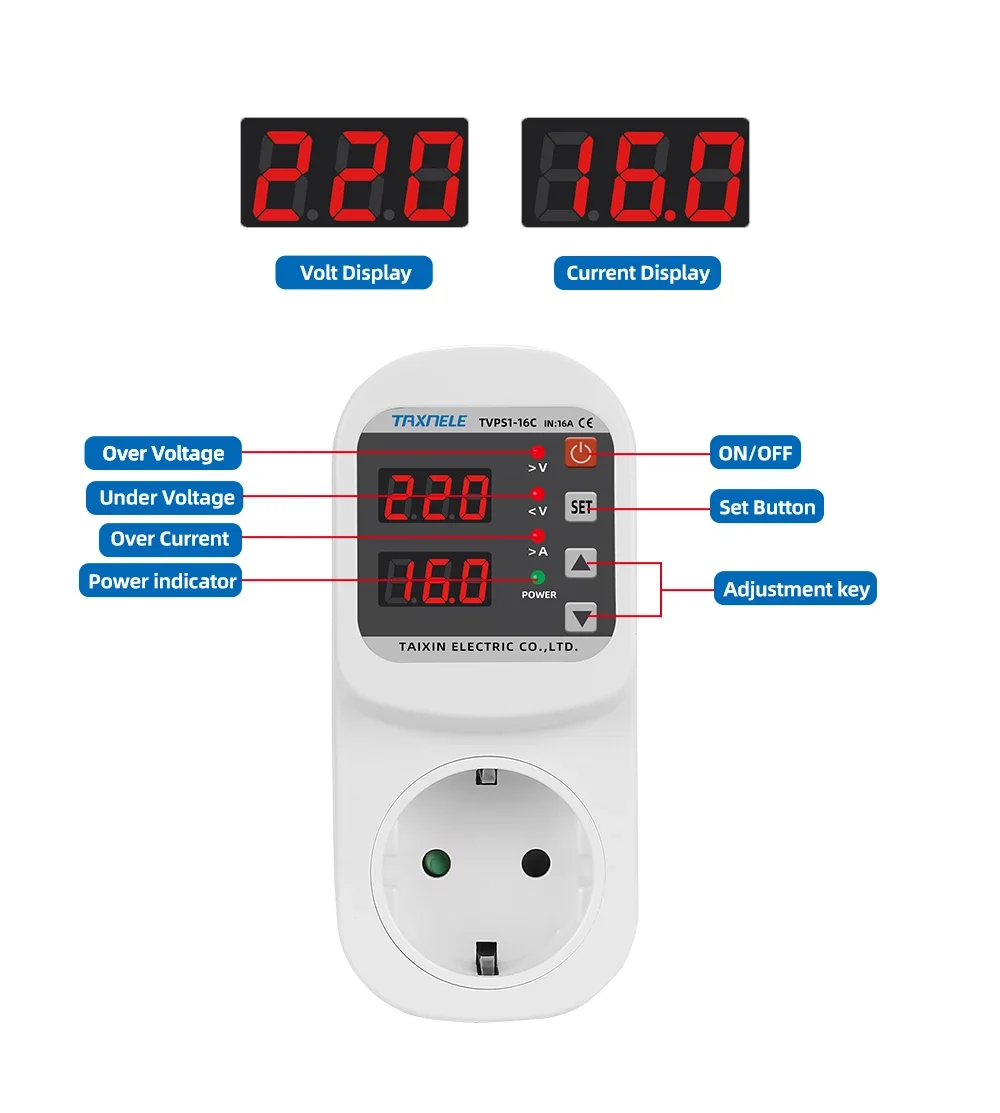

Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage -9.5% to 9.5% adjustable.
8. Current calibration: Current -9.5% to 9.5% adjustable.
9. Restore factory settings: press the down button for more than 12s
10. Fault inquiry: Press the UP button from more than 12S

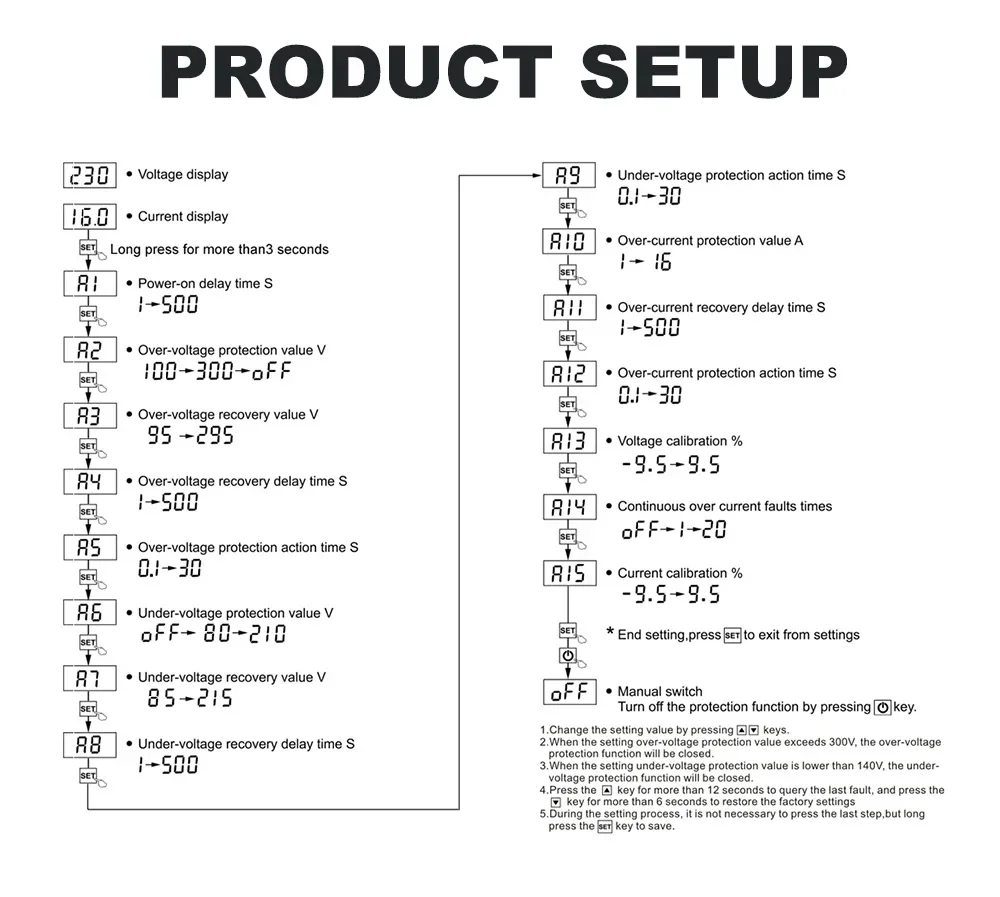

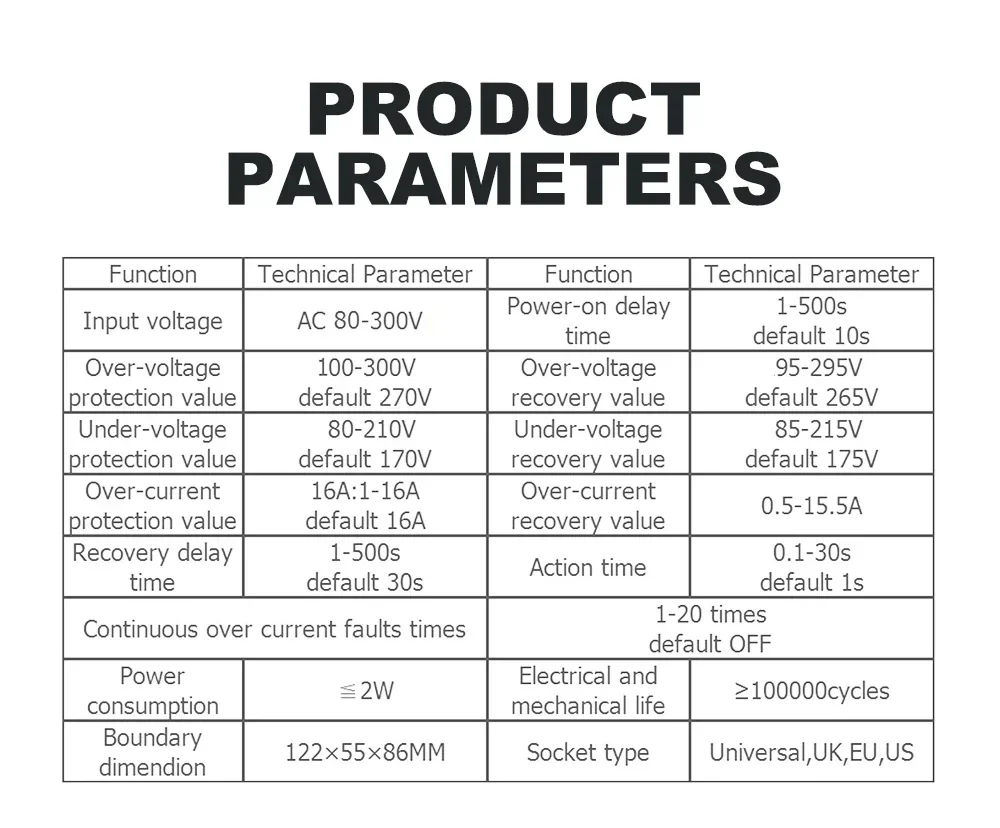

Product Parameters:

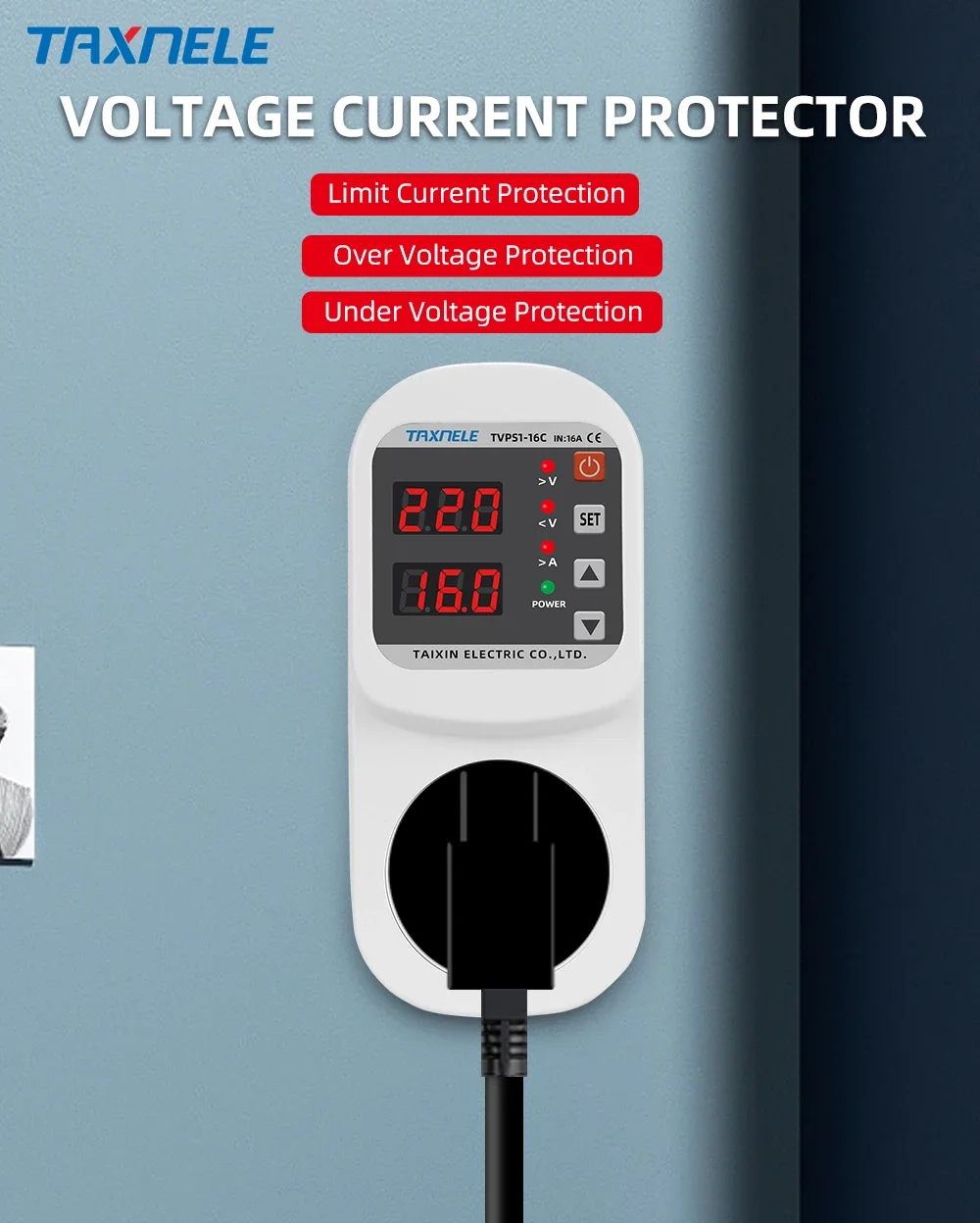

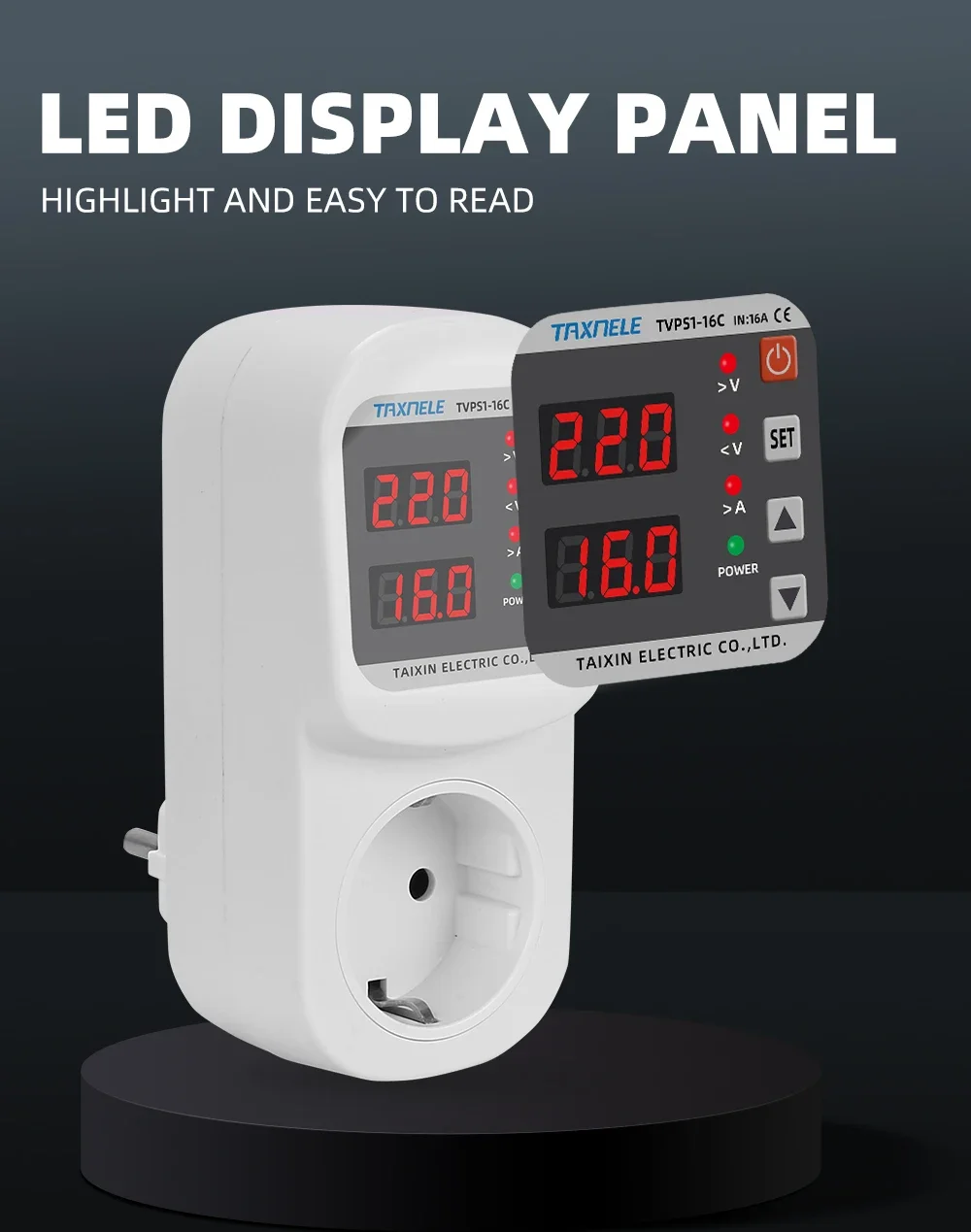

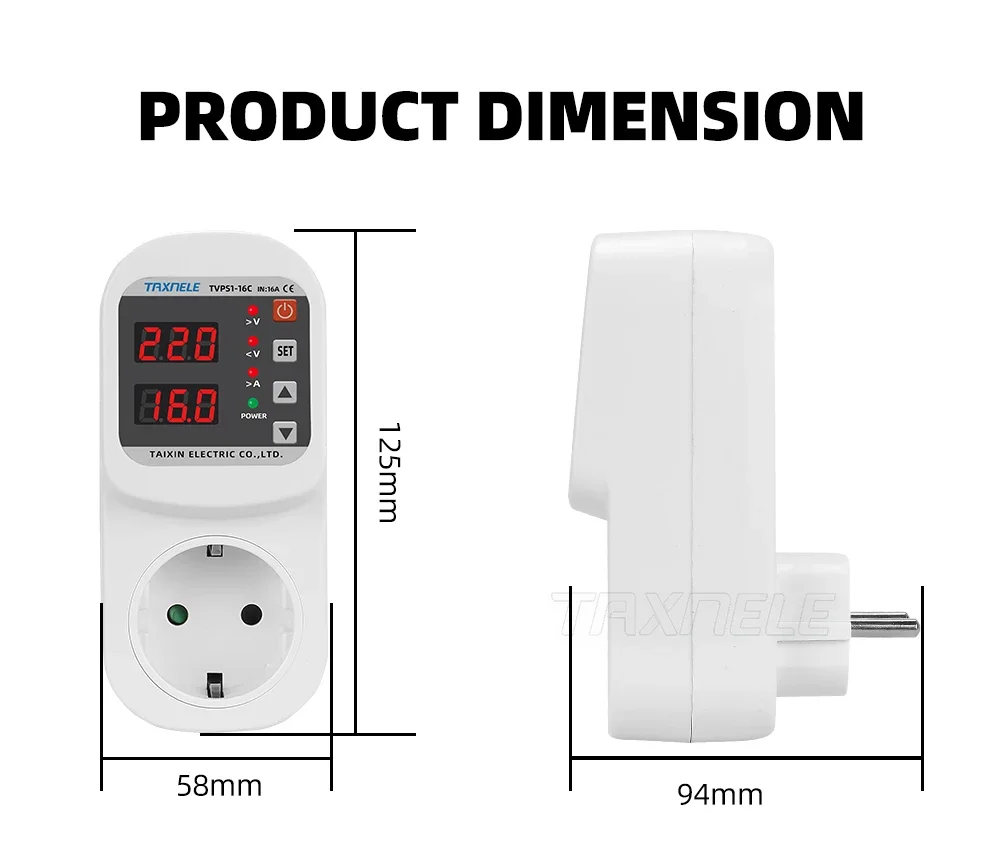

1.Model number:TVPS1-16C
2.Power supply:90-300VAC 50/60Hz
3.Max.Loading power: 1~16A Adjustable(default:16A)
4.Over-voltage protection value range:100V~300~OFF(default:270V)
Over-voltage recovery voltage range: 95V–295V(default:265V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:80V–210V –OFF(default:170V)
Under-voltage recovery voltage range:85V–215V (default:175V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-16A (default:16A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current recovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
10.Installatin:35mm DIN rail
M***i –

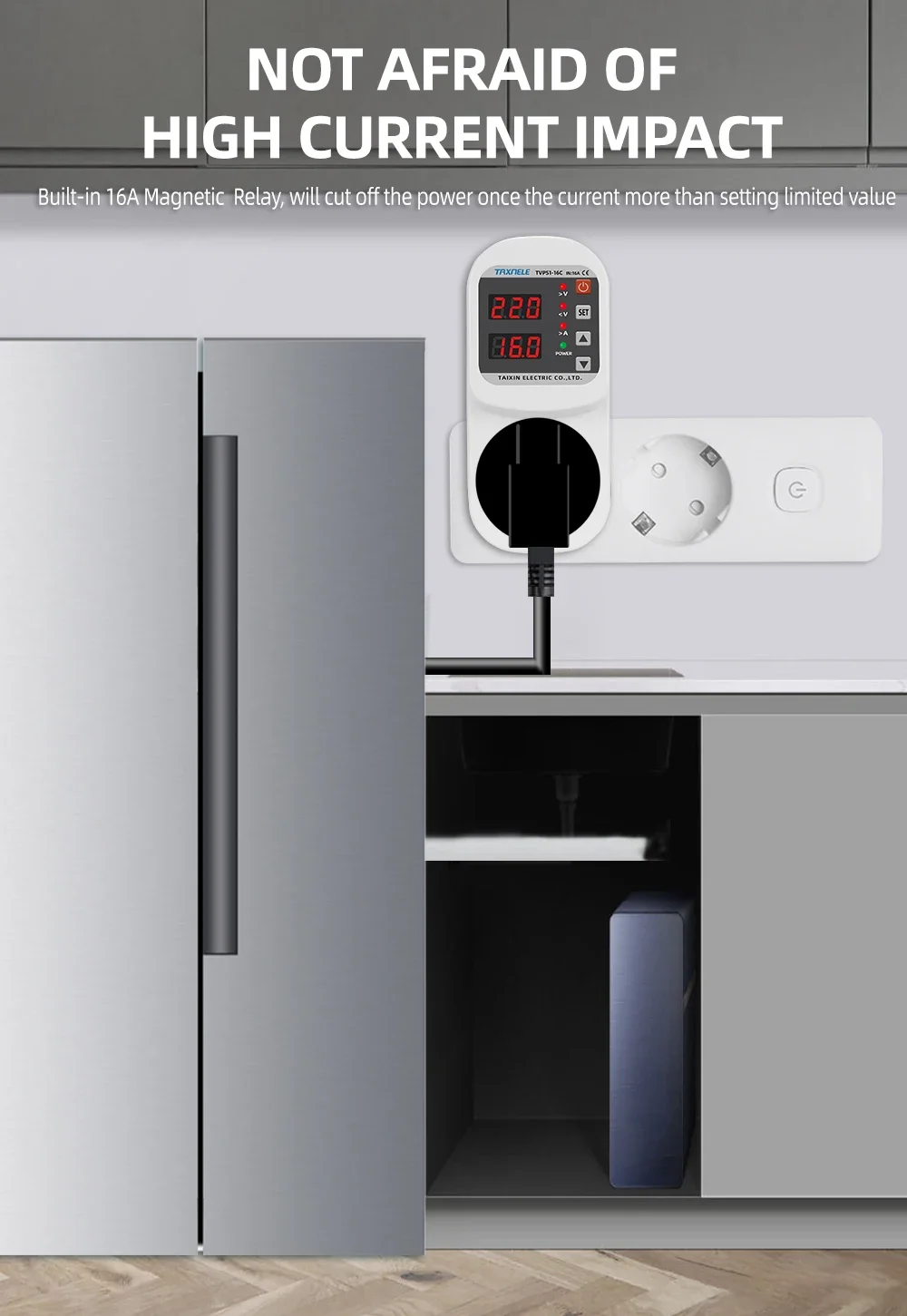

Excellent product. I use it on all acs and refrigerator. Works as described and turns off and recovers automatically when there a big fluctuations in the voltage
M***V –
I have already tested it and it functions perfectly. You can set the voltage you want it to input, and at the moment it exceeds that voltage, it protects what you have plugged in. When that voltage drops, it resumes working without issues.
e***h –
Not suitable for the electricity grid in Israel, the pins do not comply with the standards in Israel.
AliExpress Shopper –
I bought two pieces. Very satisfied with the product, matches the description, no noise or foreign smell, quality material. They are very helpful because the voltage in the network often fluctuates high. I recommend the product and the seller.
j***j –
Looks like good quality. Arrived quickly. Bought because of frequent disconnections. Putin sucks!!!
AliExpress Shopper –
The product arrived quickly, well packaged, undamaged, has been working for a week, has operated twice during voltage fluctuations, the product is of high quality, I will order 2 more pieces. Instructions are easy to understand.
AliExpress Shopper –
Received it. It arrived in Kharkov in less than two weeks. Everything is intact, not wrinkled. Although the packaging was in a box and a bag. The device has an overdrive feature and too many settings. But for the price, it’s like a regular protector with three parameters. In general, I had to figure it out and set it up. I’m satisfied. My refrigerator is too 🙂. Happy New Year to the Chinese friends. Peace and goodness!
G***r –
Received in two weeks. Well packaged. Very accurate voltage, checked with a good tester, no discrepancies. Thank you.
AliExpress Shopper –
The device arrived quickly. It is as described. All settings show up. Recommend the seller.
А***а –

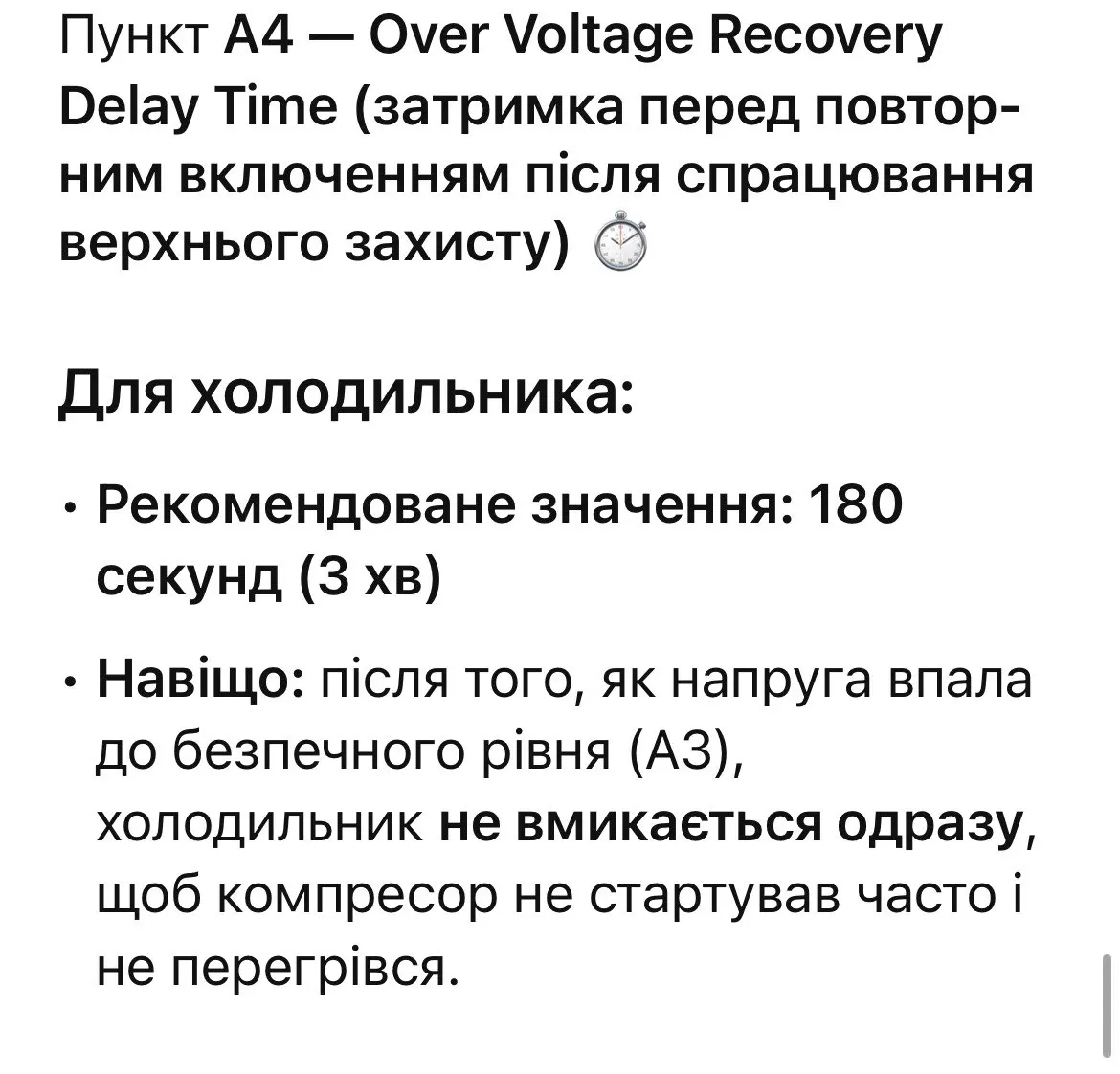

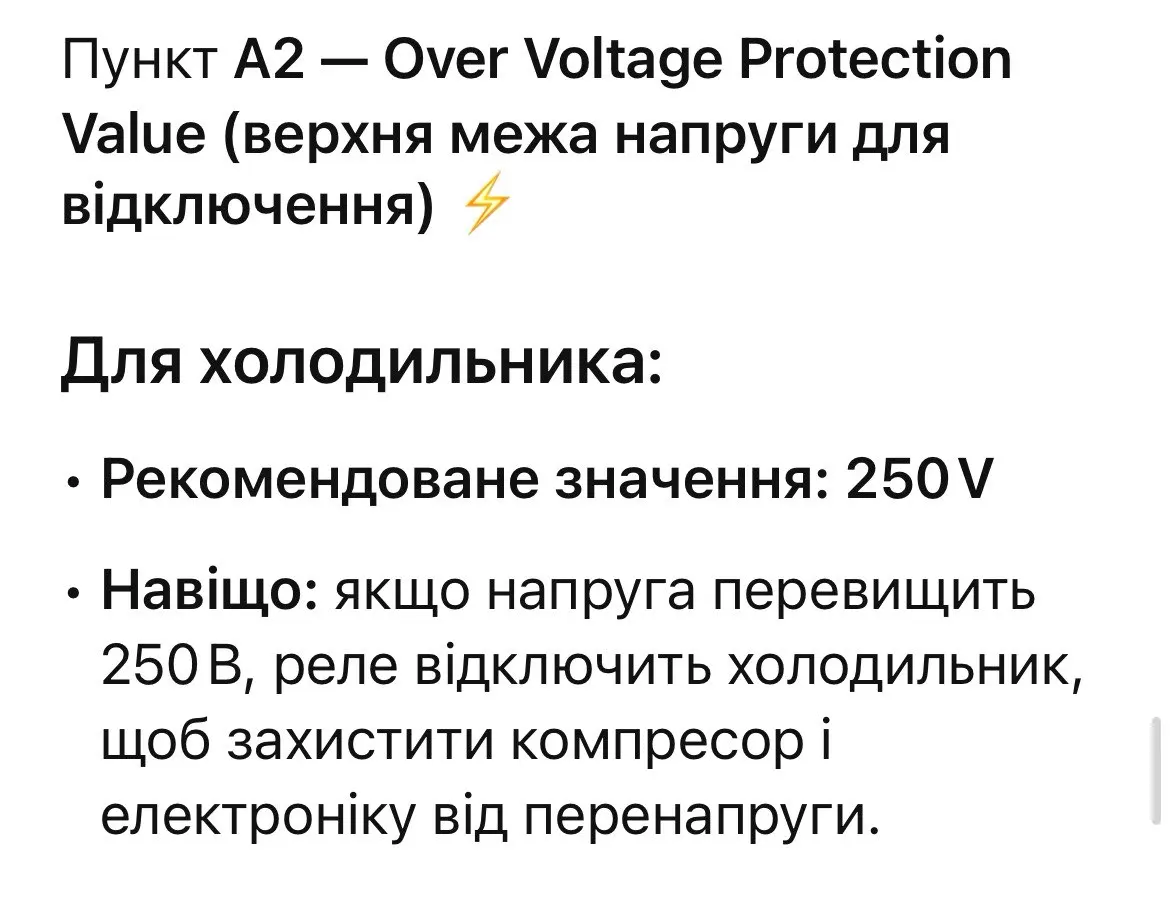

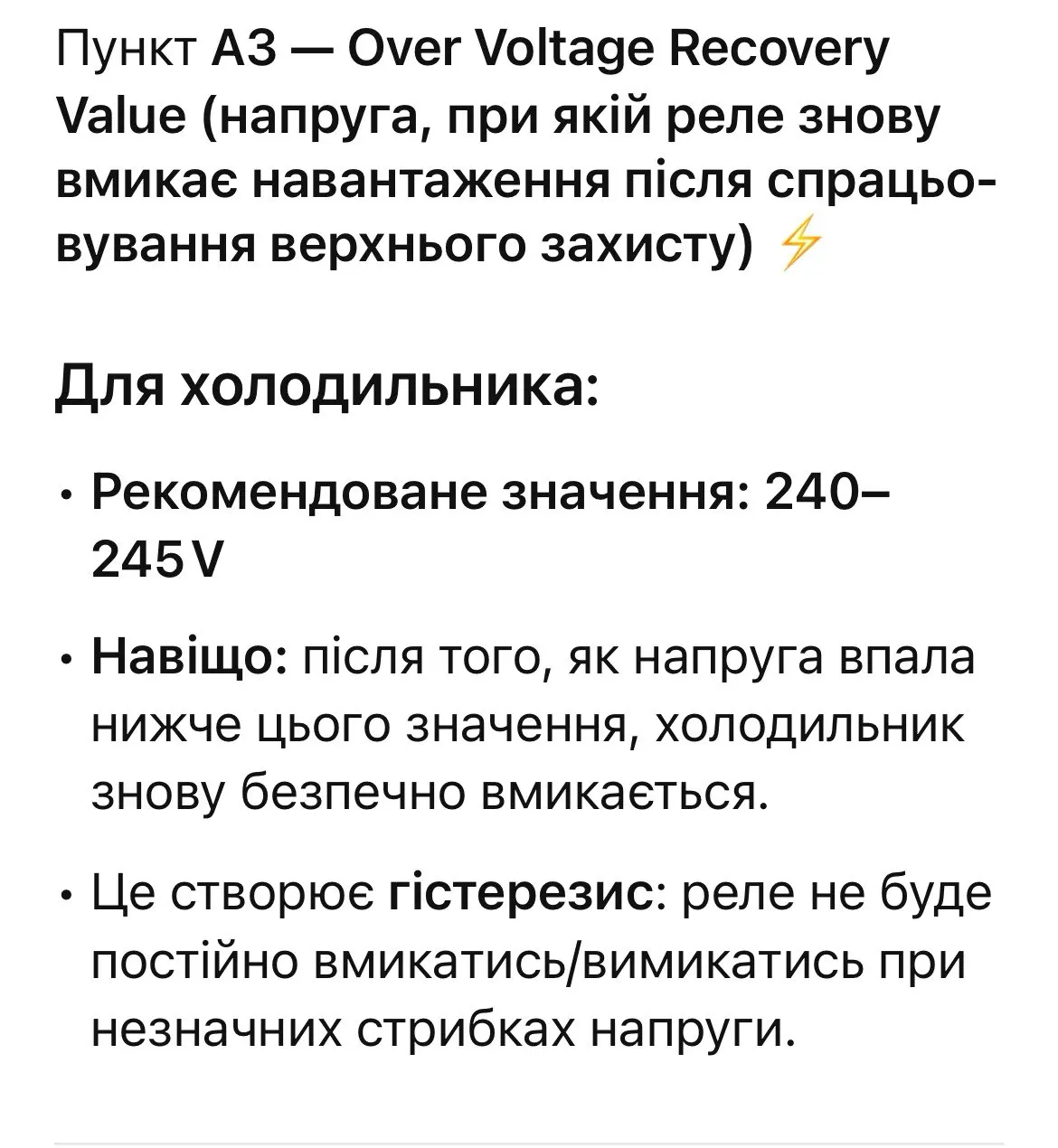

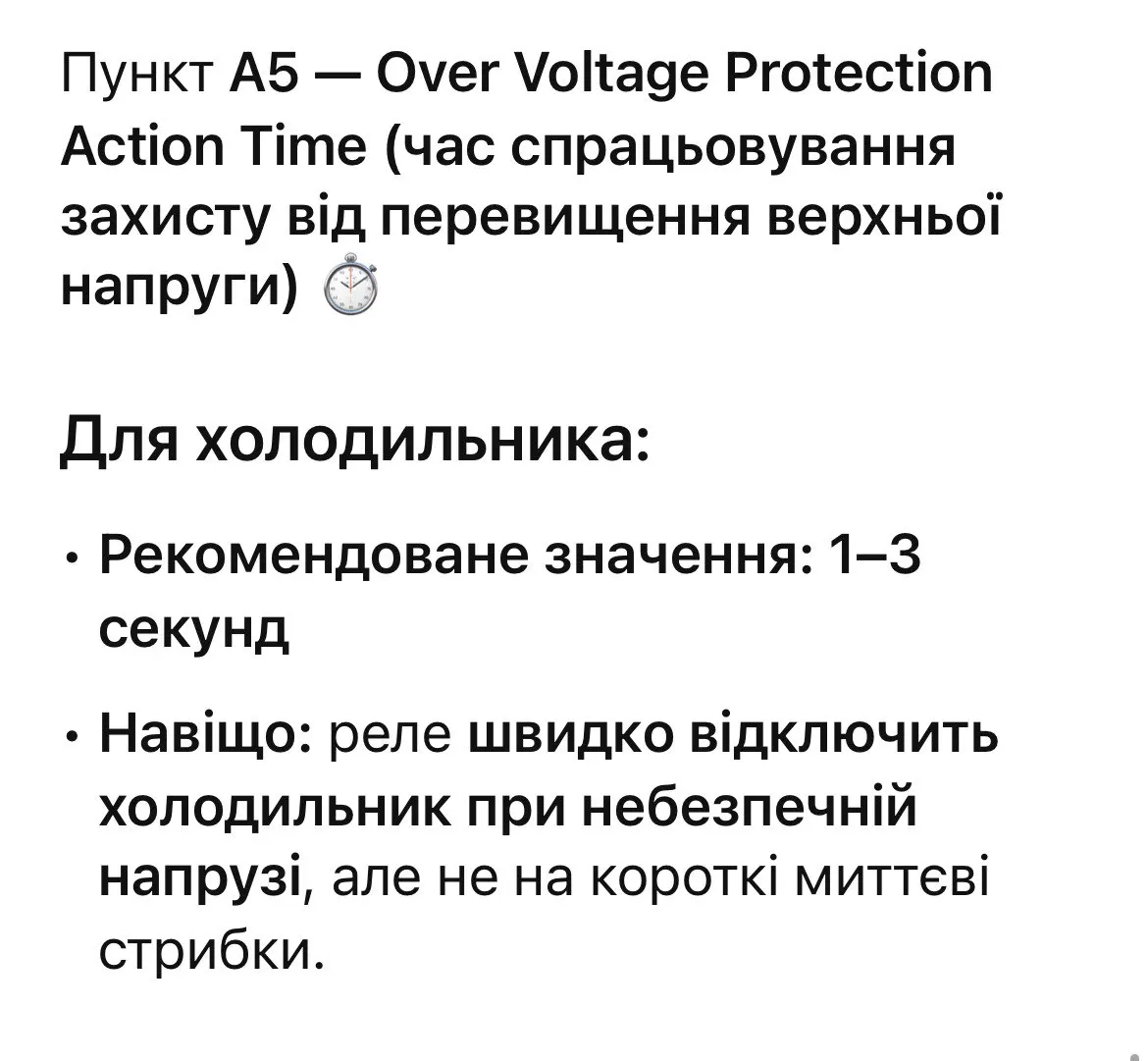

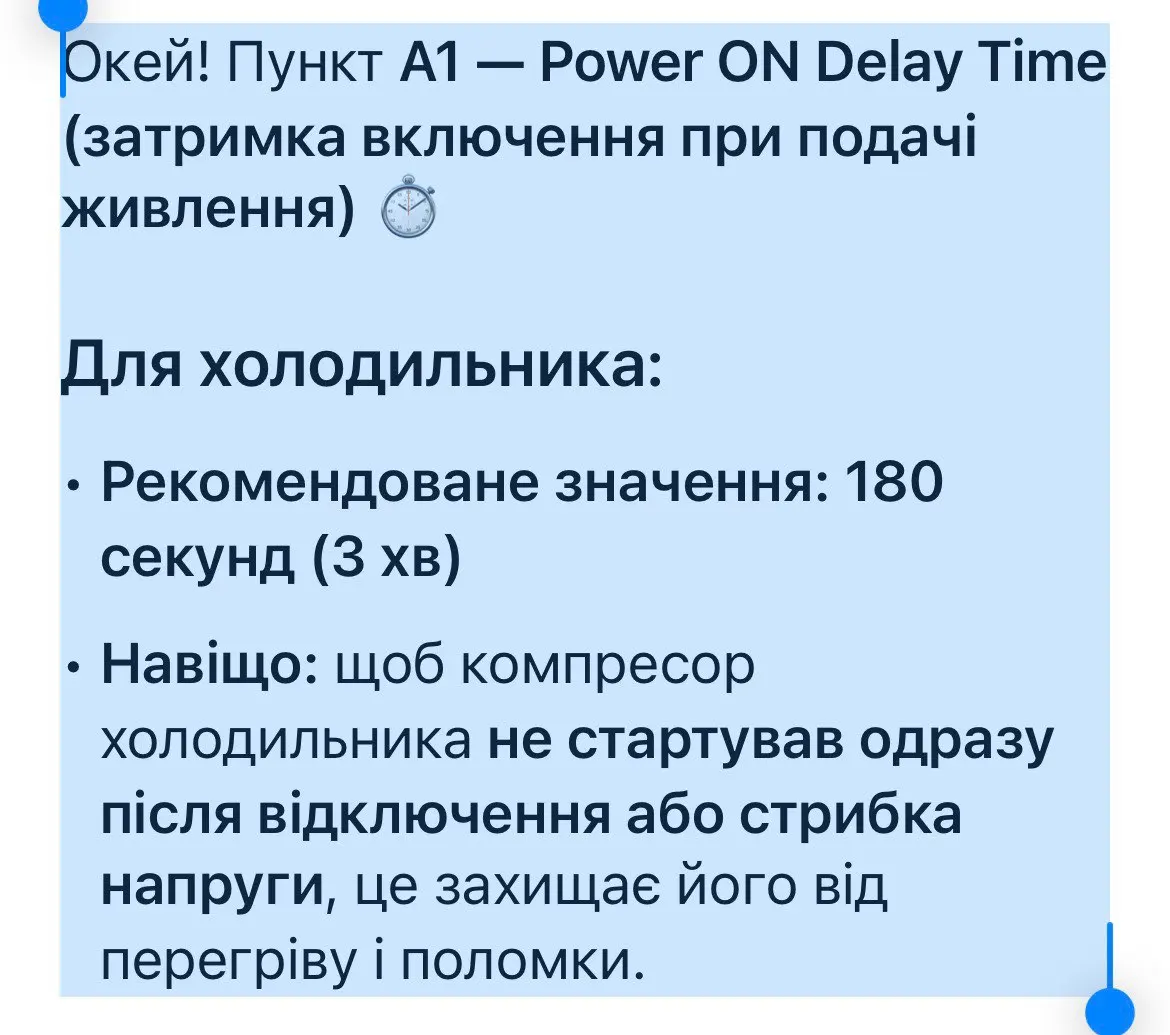

I ordered three items, all arrived intact. I need them for the refrigerators. I had to put a bit of effort into setting them up. I’m leaving screenshots from the gpt chat, maybe it will be useful to someone (specifically for the refrigerator).
E***o –
I liked the protection mechanism. There are various settings, and most importantly, there is calibration of the voltmeter for voltage and the ammeter for current. I have ordered more of these mechanisms. The housing is made of high-quality plastic, and the assembly is neat.
AliExpress Shopper –

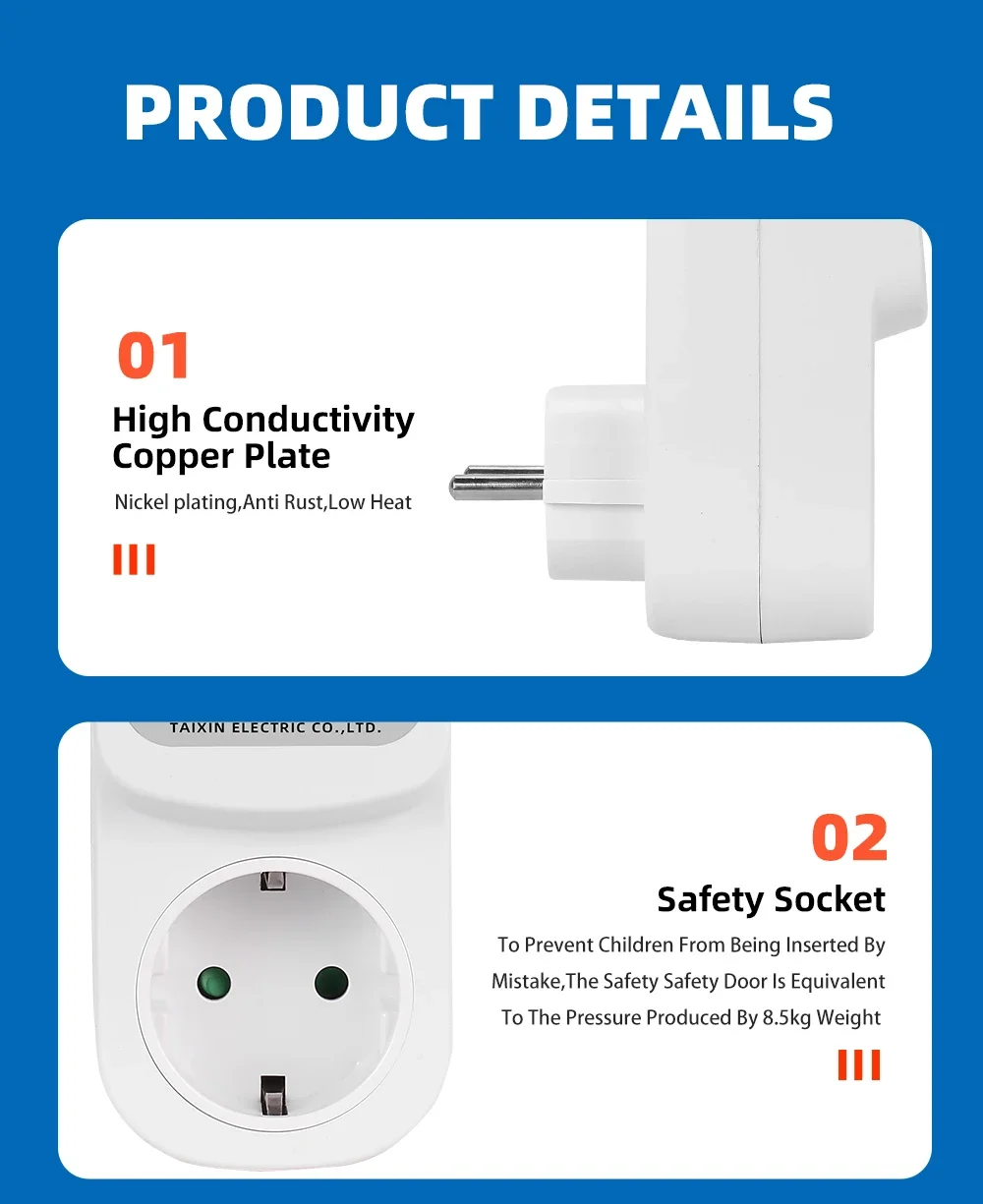

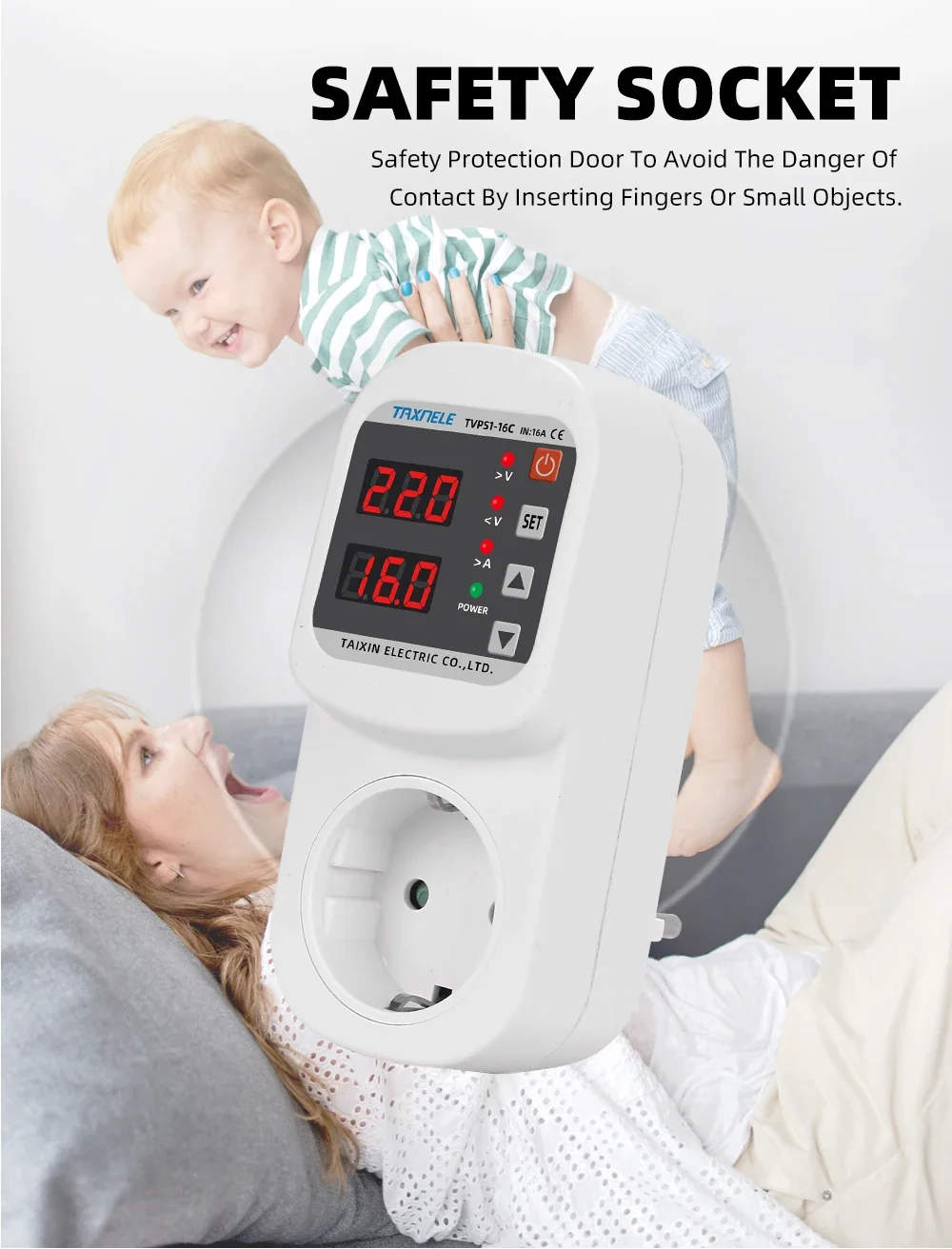

I really liked the voltage controller. There are a lot of settings. I was pleased with the ability to adjust the variable voltage and current, which allows you to set the actual voltage in the network and the current consumed. The housing is made of high-quality plastic. The socket has child protection against electric shock. I definitely recommend it!
AliExpress Shopper –
A good voltage protection module. This is the fifth one I’ve bought. The device has voltage calibration for the voltmeter and adjustment of the current consumption, which is very important. There are many other adjustable settings. It responds clearly to high and low voltage. The housing is made of high-quality plastic. I recommend it.
AliExpress Shopper –
Shipped quickly. Sturdy plastic, excellent functionality (it tracks current as well as voltage). Pretty much the same as tomzn, but different front sticker design and better packaged.
Under $10 for pair with discounts.
AliExpress Shopper –
I definitely recommend it. Now, when the voltage is unstable, this relay is an indispensable item.
AliExpress Shopper –

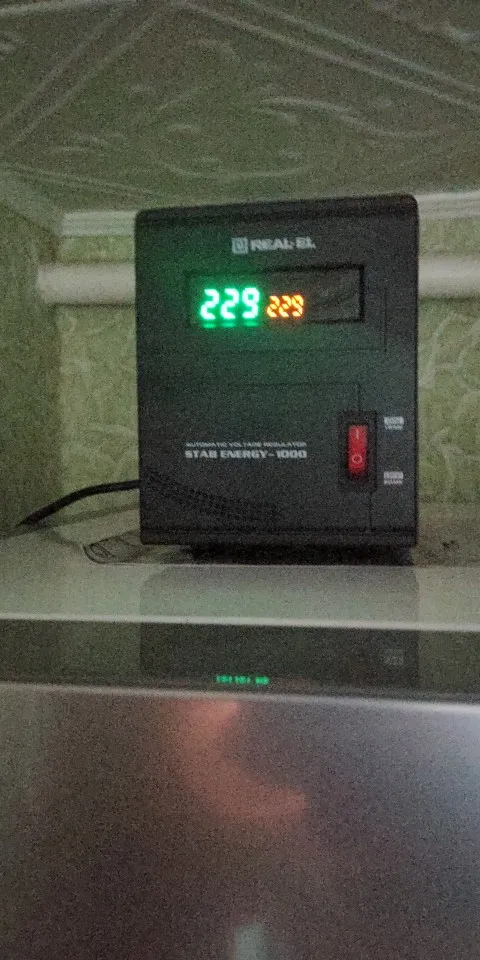

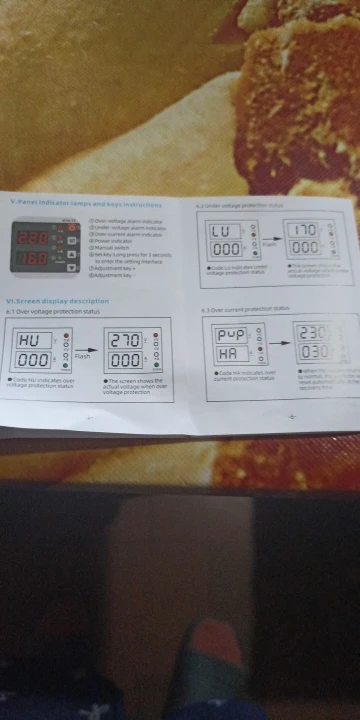

Everything is great, easy to set up. The only thing missing is the instruction manual in Russian; I have to translate it using Google Translate. But it works stably; the whole house can be set up with these relays to work with any type of equipment. The lag with the stabilizer is minimal; I tried measuring it with a multimeter.
AliExpress Shopper –
Works well, cuts supply within 1 second. solid build
