Description
Introduction
The TB60 is a new generation of multimedia player created by NovaStar for full-color LED displays. This multimedia player integrates playback and sending capabilities, allowing users to publish content and control LED displays with a computer, mobile phone, or tablet. Working with our superior cloud-based publishing and monitoring platforms, the TB60 enables users to manage LED displays from an Internet-connected device anywhere, anytime.
Support for multi-screen synchronous playback and synchronous and asynchronous modes makes this multimedia player a perfect fit for a wide range of applications.
Thanks to its reliability, ease of use, and intelligent control, the TB60 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, shelf displays, and much more.
Certification：CE, RoHS, FCC, IC, FCC ID, IC ID, UKCA, CCC, NBTC
If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please contact NovaStar to confirm or address the problem. Otherwise, the customer shall be responsible for the legal risks caused or NovaStar has the right to claim compensation.
Safe and stable for worry-free operation
✓ Designed with safety in mind to keep troubles far away
✓ Automatically connects to optimal signal, no longer a need to worry about signal loss
✓ Comprehensive record of daily logs with full status monitoring
✓ Real-time watchdog monitoring with automatic error correction
✓ Receiving card cascading and redundant backup for multiple levels of protection
Flexible and unrestricted playback
✓ Cloud playback
✓ Wireless playback
✓ U-disk playback

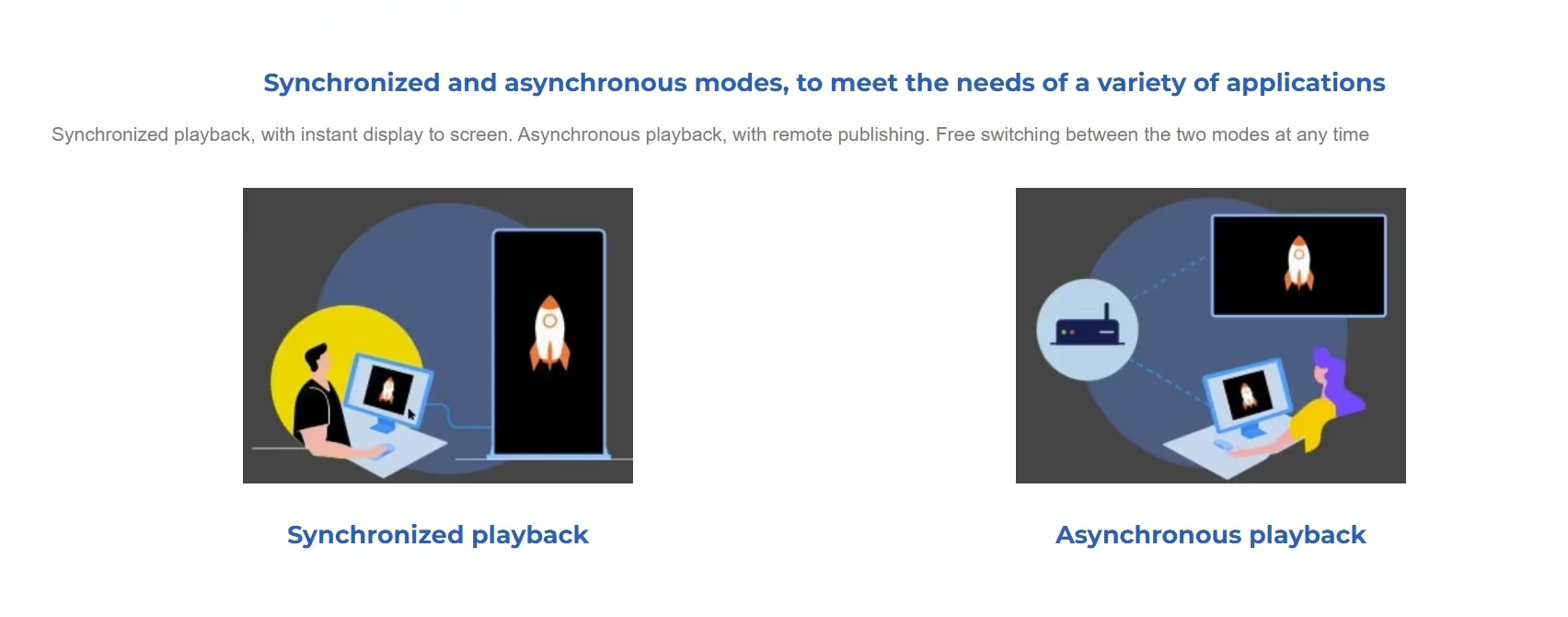

Synchronized and asynchronous modes, to meet the needs of a variety of applications
Synchronized playback, with instant display to screen. Asynchronous playback, with remote publishing. Free switching between the two modes at any time
Professional integration, your new calibration partner
The entire Taurus Series features professional-level integrated calibration, to restore the display to it’s original beauty

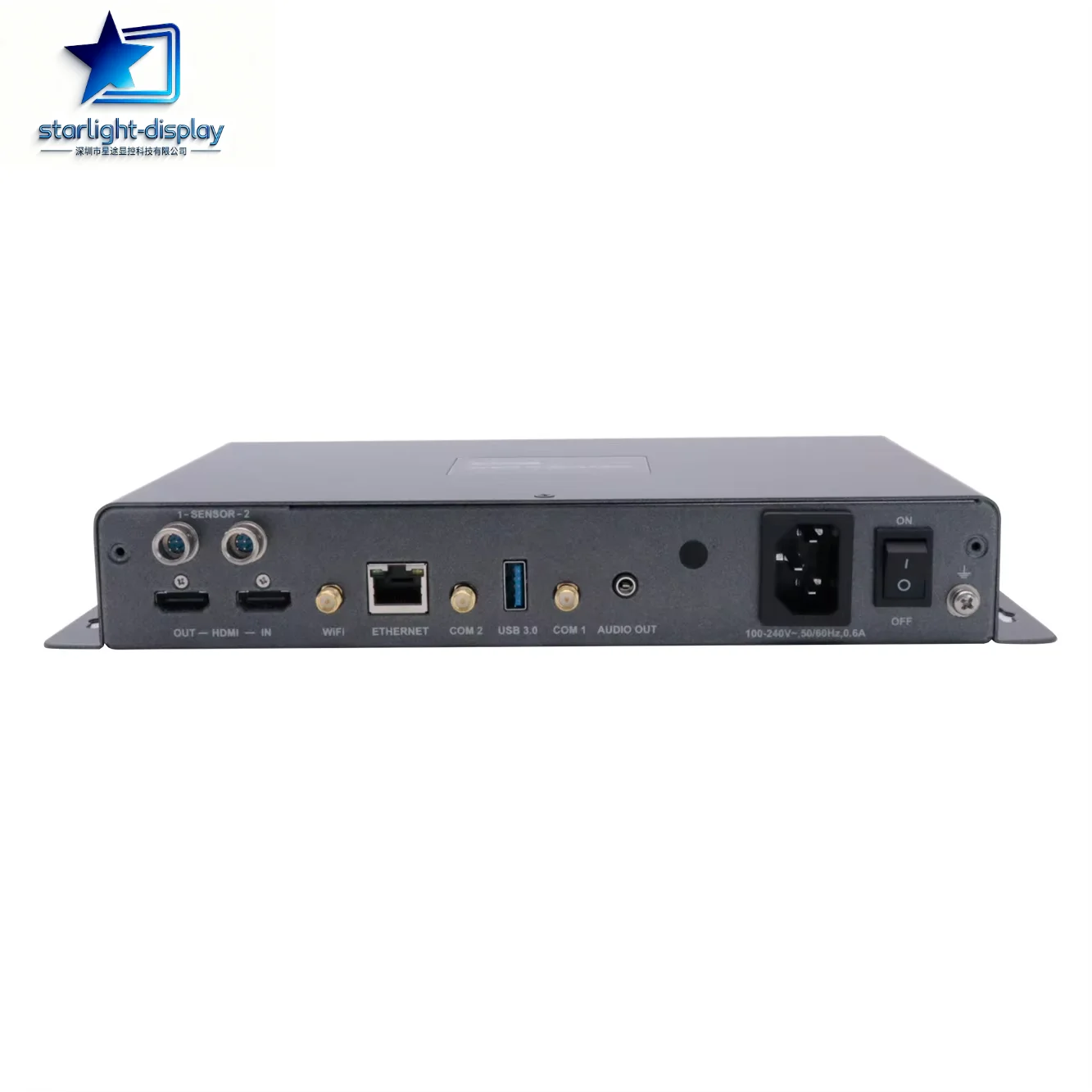

Input
− 1x HDMI 1.4 connector
In synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically.
− 2x Sensor connectors
Connect to brightness sensors or temperature and humidity sensors.
Connect to brightness sensors or temperature and humidity sensors.
Output
− Loading capacity up to 2,300,000 pixels
Maximum width: 4096 pixels
Maximum height: 4096 pixels
Maximum width: 4096 pixels
Maximum height: 4096 pixels
− 4x Gigabit Ethernet ports
All these four ports serve as primary by default. Users can also set two as primary and the other two as backup.
− 1x Stereo audio connector
The audio sample rate of the internal source is fixed at 48 kHz. The audio sample rate of the external source supports 32 kHz, 44.1 kHz, or 48 kHz. If NovaStar’s multifunction card is used for audio output, audio with a sample rate of 48 kHz is required.
− 1x HDMI 1.4 connector
Maximum output: 1080p@60Hz, support for HDMI loop
Control
− 1x USB 3.0 (Type A) port
Allows for playback of content imported from a USB drive and firmware upgrade over USB.
− 1x USB (Type B) port
Connects to the control computer for content publishing and screen control.
− 1x Gigabit Ethernet port
Connects to the control computer, a LAN or public network for content publishing and screen control.
Performance
− Powerful processing capacity
1，Quad-core ARM A55 processor @1.8 GHz
2，Support for H.264/H.265 4K@60Hz video decoding
3，1 GB of onboard RAM
4，16 GB of internal storage
− Flawless playback
2x 4K, 6x 1080p, 10x 720p, or 20x 360p video playback
Functionality
− All-round control plans
1，Enables users to publish content and control screens from a computer, mobile phone, or tablet.
2，Allows users to publish content and control screens from anywhere, anytime.
3，Allows users to monitor screens from anywhere, anytime.
− Switching between Wi-Fi AP and Wi-Fi STA
1，In Wi-Fi AP mode, the user terminal connects to the built-in Wi-Fi hotspot of the TB60. The default SSID is “AP+Last 8
2，In Wi-Fi STA mode, the user terminal and the TB60 are connected to the Wi-Fi hotspot of a router.
2，In Wi-Fi STA mode, the user terminal and the TB60 are connected to the Wi-Fi hotspot of a router.
− Synchronous and asynchronous modes
1，In asynchronous mode, the internal video source works.
2，In synchronous mode, the video source input from the HDMI connector works.
− Synchronous playback across multiple screens
1，NTP time synchronization
2，GPS time synchronization (The specified 4G module must be installed.)
− Support for 4G modules
1，The TB60 ships without a 4G module. Users have to purchase 4G modules separately if needed.
2，Network connection priority: Wired network > Wi- Fi network > 4G network
3，When multiple types of networks are available, the TB60 will choose a signal automatically according to the priority.

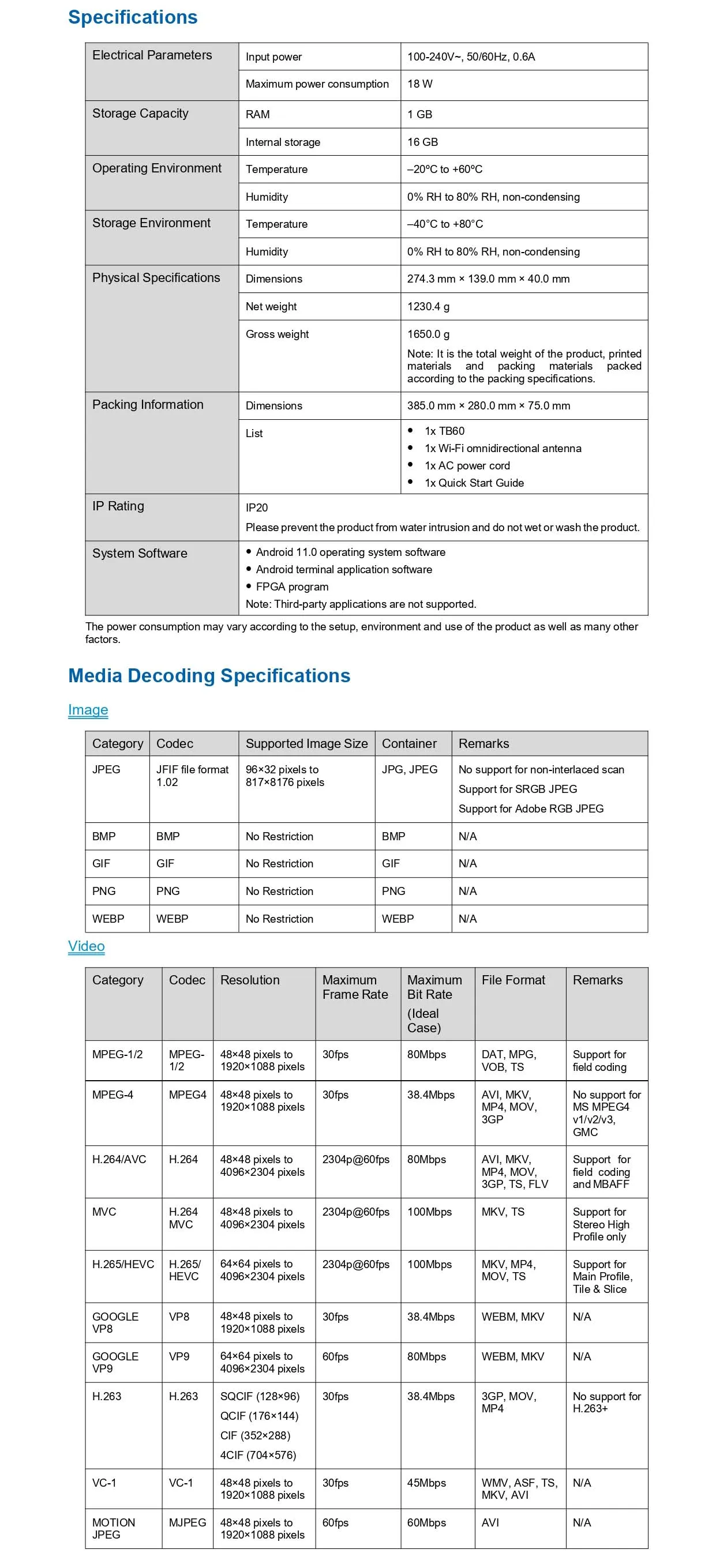

Specification
FCC Caution
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1，Reorient or relocate the receiving antenna.
2，Increase the separation between the equipment and receiver.
3，Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4，Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IC Caution
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
This equipment complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites établies pour un environnement non contrôlé.
Radiation Exposure Statement
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cetéquipementestconforme Canada limitesd'exposition aux radiations dans un environnement non contrôlé. Cetéquipementdoitêtreinstallé et utilisé à distance minimum de 20cm entre le radiateur et votre corps.
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cetéquipementestconforme Canada limitesd'exposition aux radiations dans un environnement non contrôlé. Cetéquipementdoitêtreinstallé et utilisé à distance minimum de 20cm entre le radiateur et votre corps.

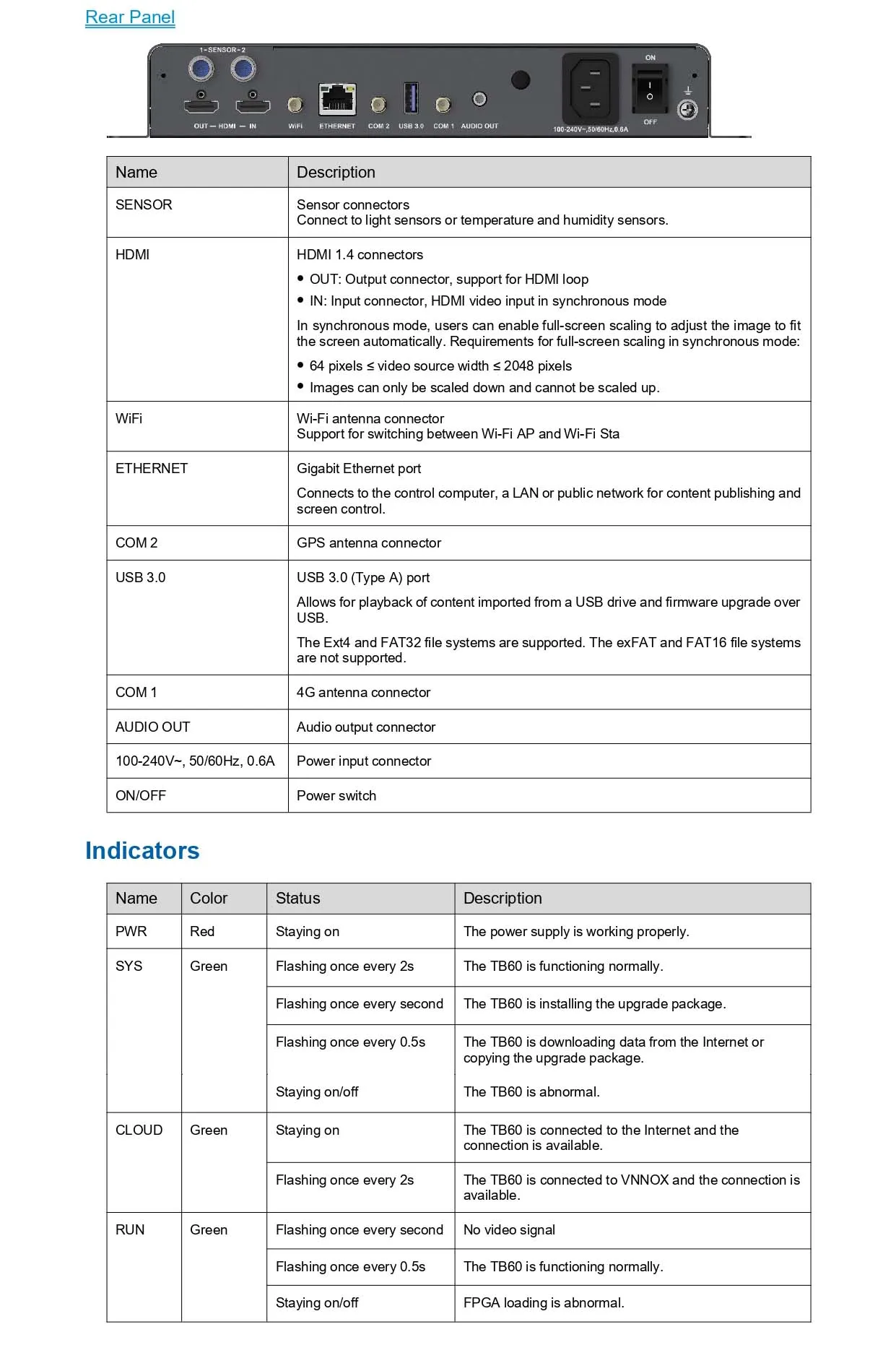

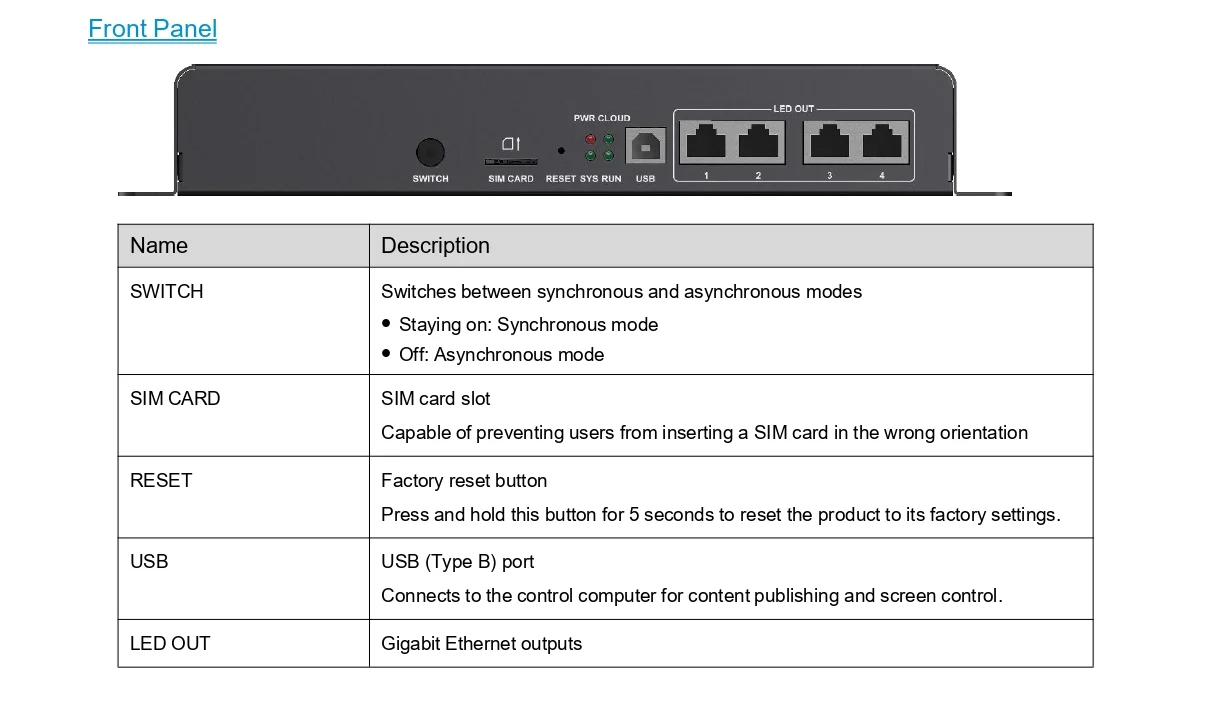

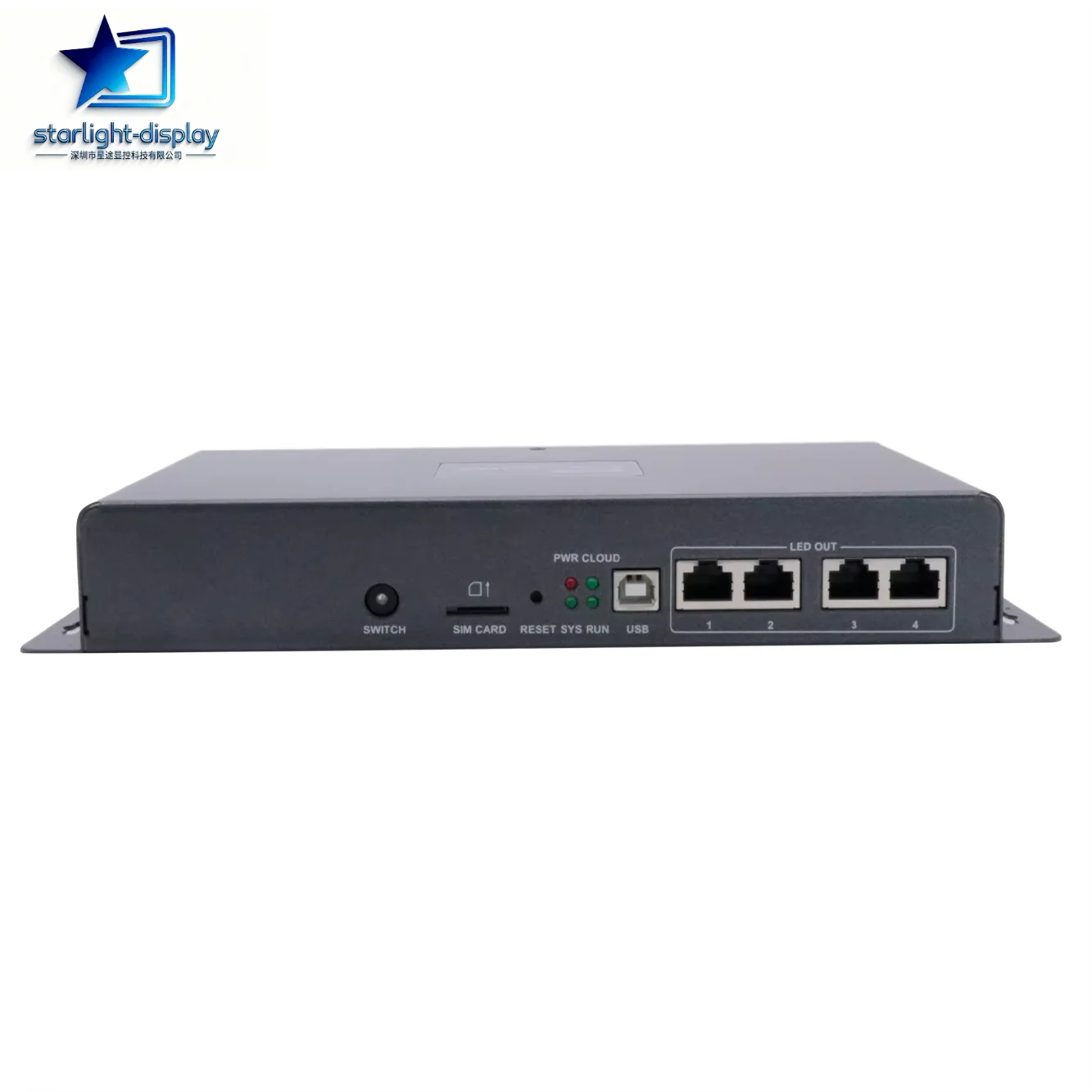

Appearance

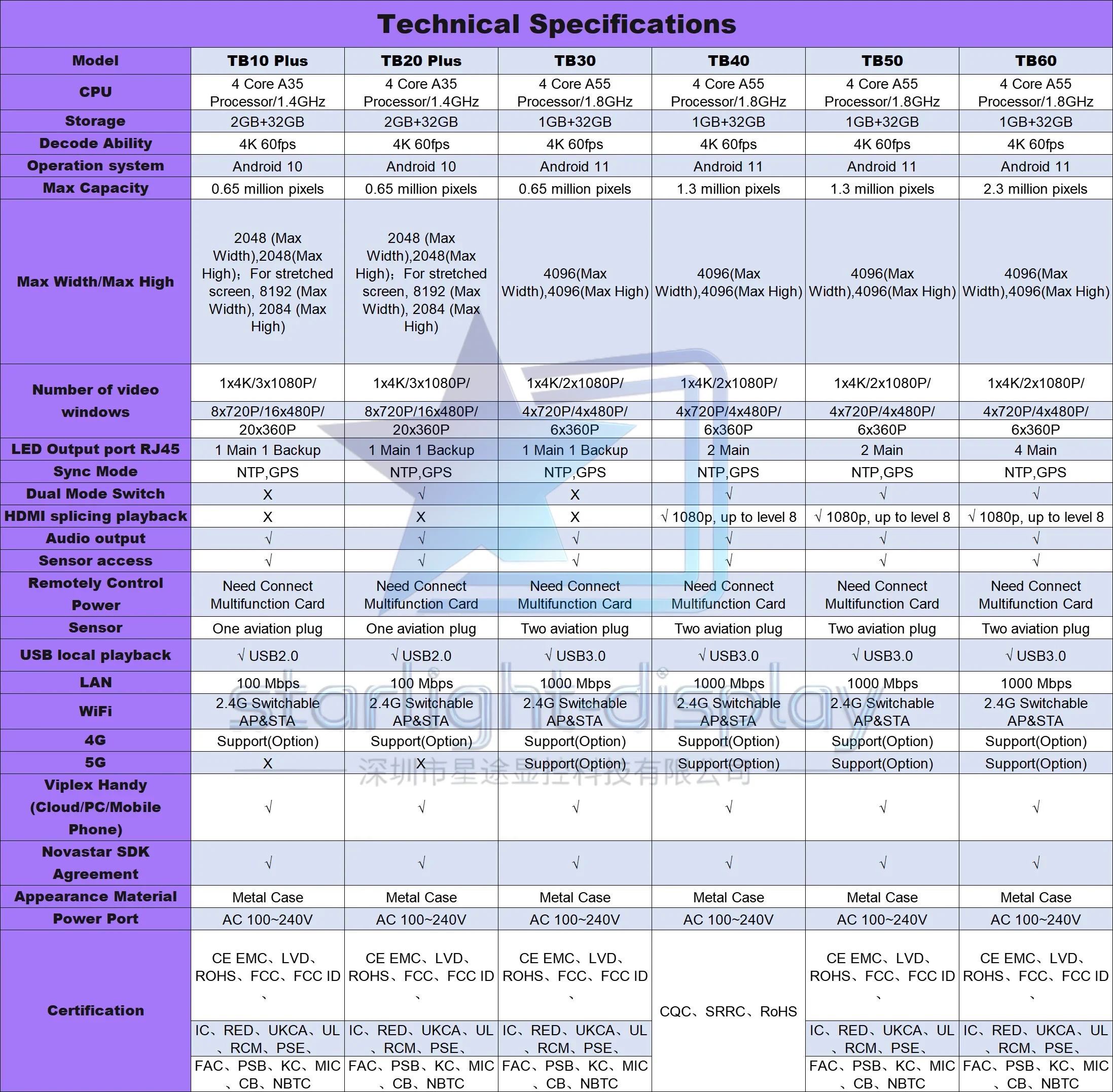

Serial Comparison
