Description

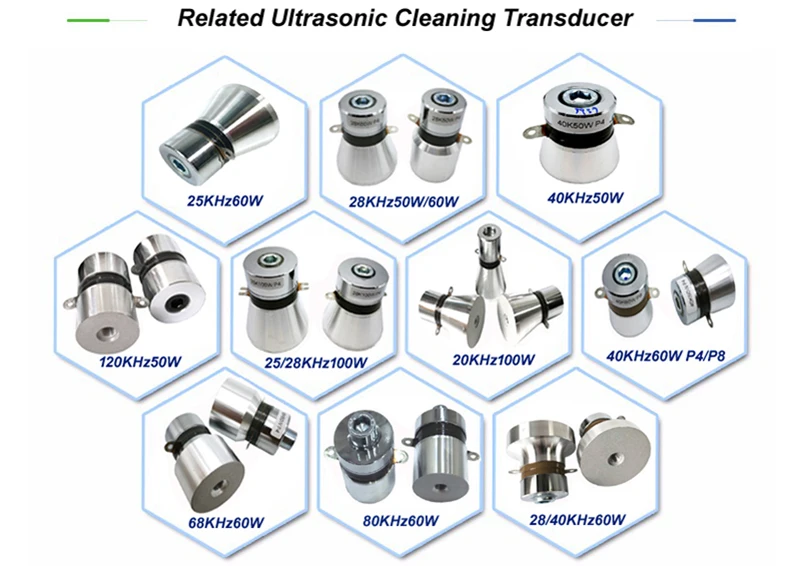

Relevant Recommendation

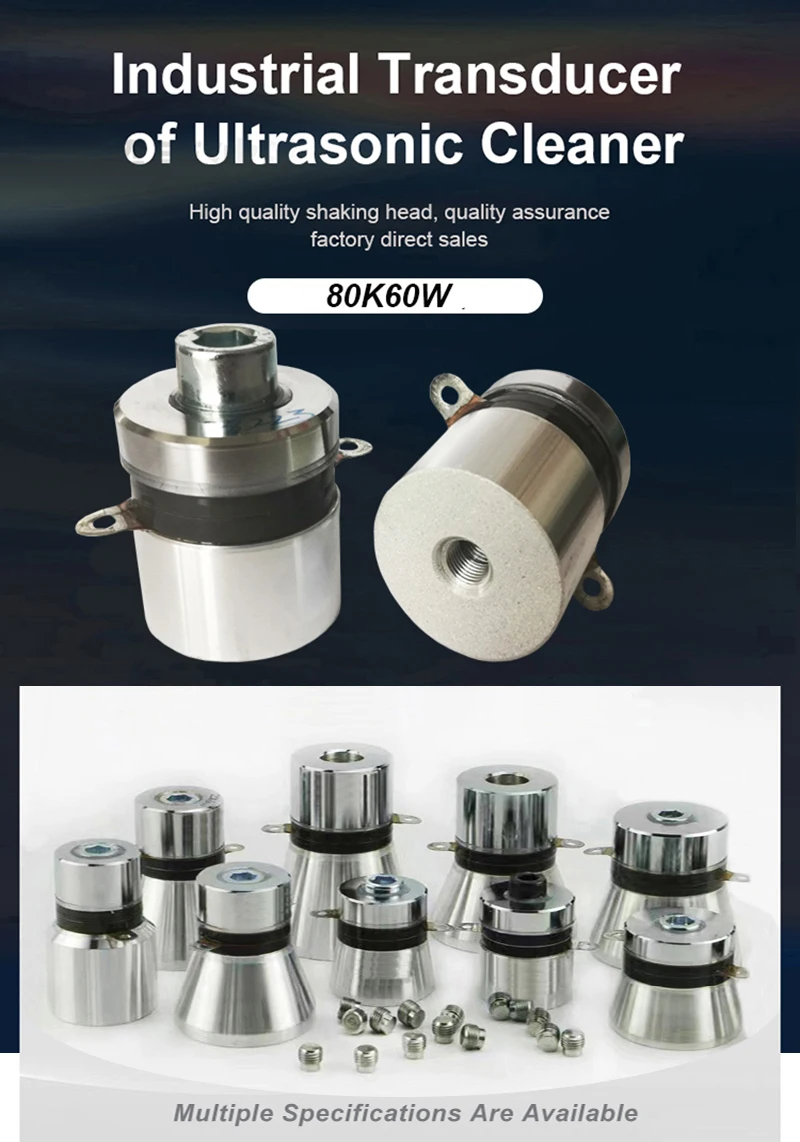

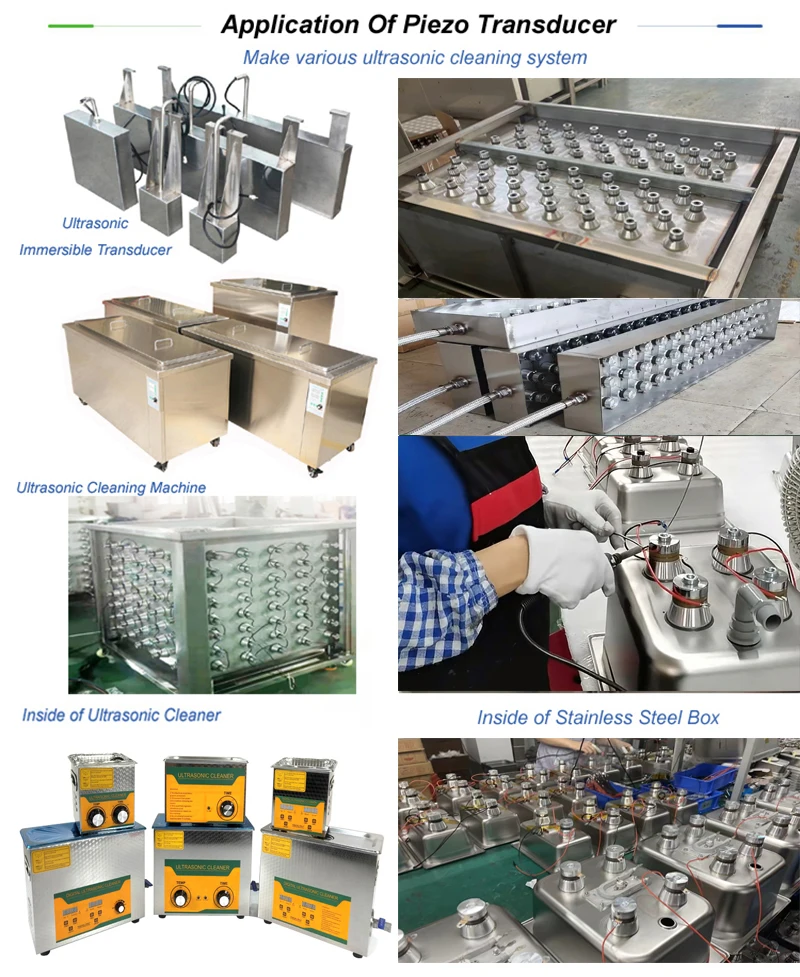

Application: ultrasonic cleaning transducer normally used in ultrasonic cleaning industry.
High quality piezoelectric ceramic material with good heat resistence.
Lower resonant Impedance.large amplitude,high vibration speed.
Frequency and static capacitance keep more consistency.
High output power. ight with bolt ,be easy to install,reliable .
Power: 60W
Material: Stainless Steel
Static capacitance:5400 ± 10% pF
Resonant Impedance: 10-20Ω

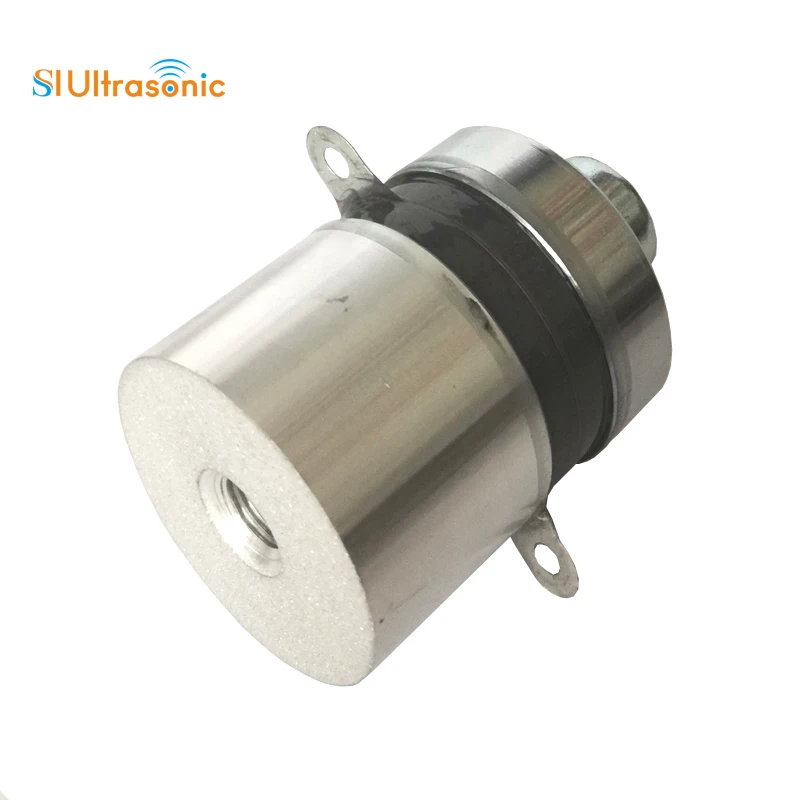

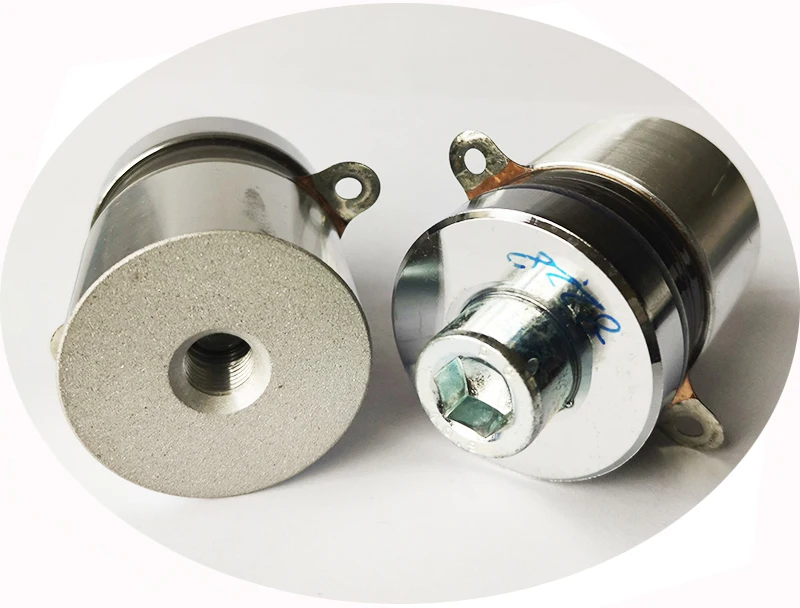

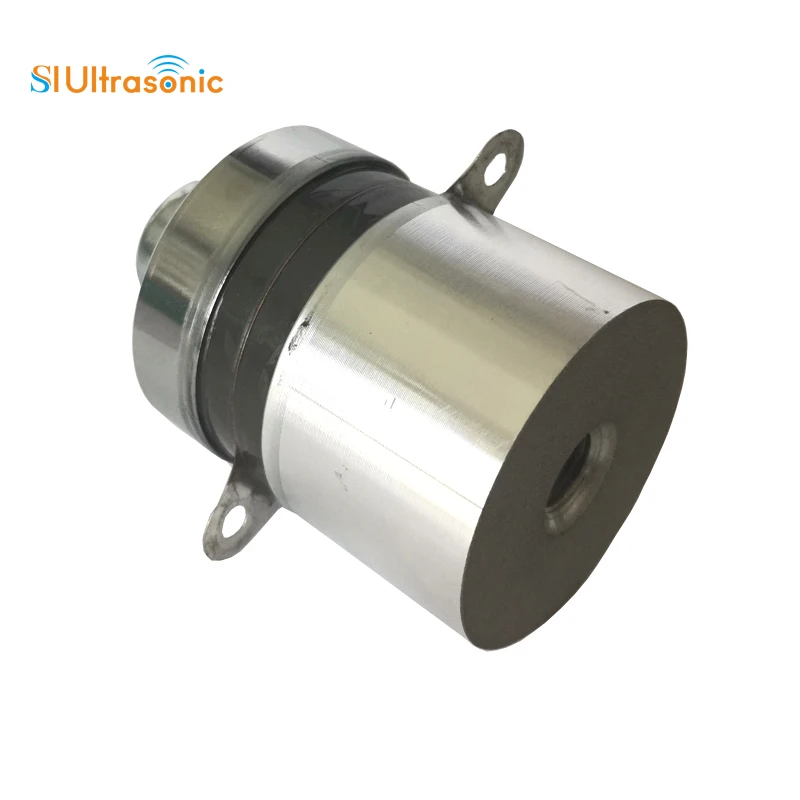

Dimensions: As pictures shown.(approx)
Bottom diameter: 40mm
Height: 62mm
Purposes: for ultrasonic cleaning

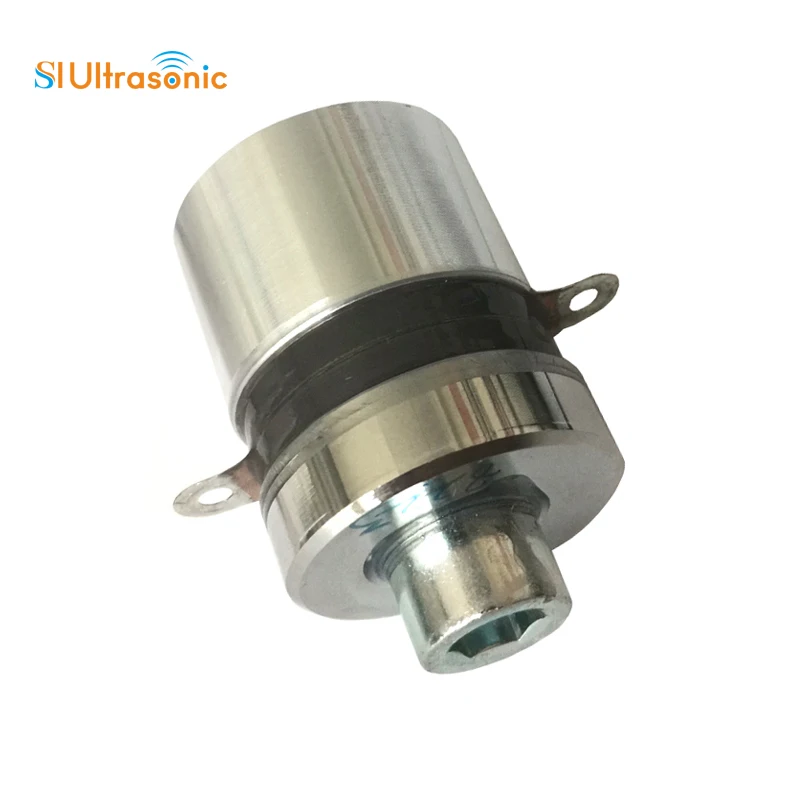

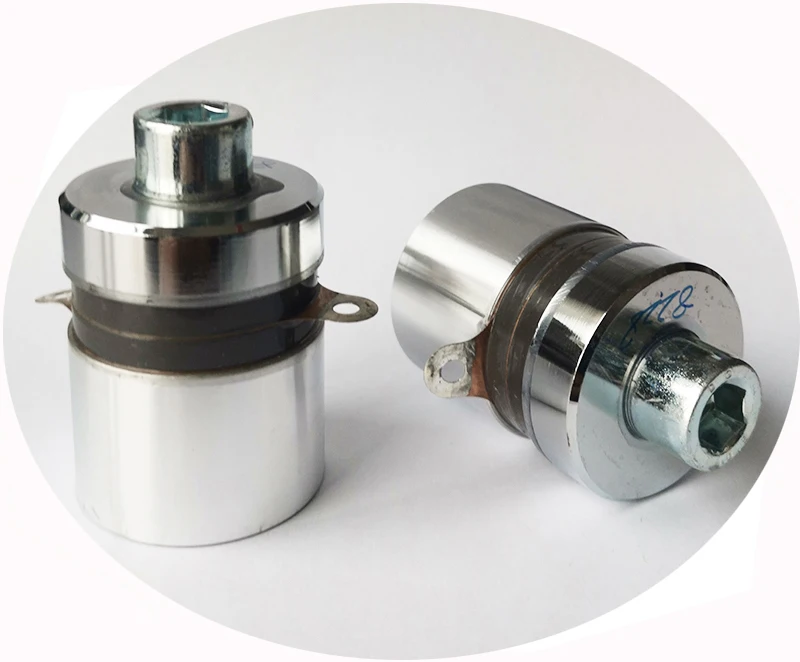

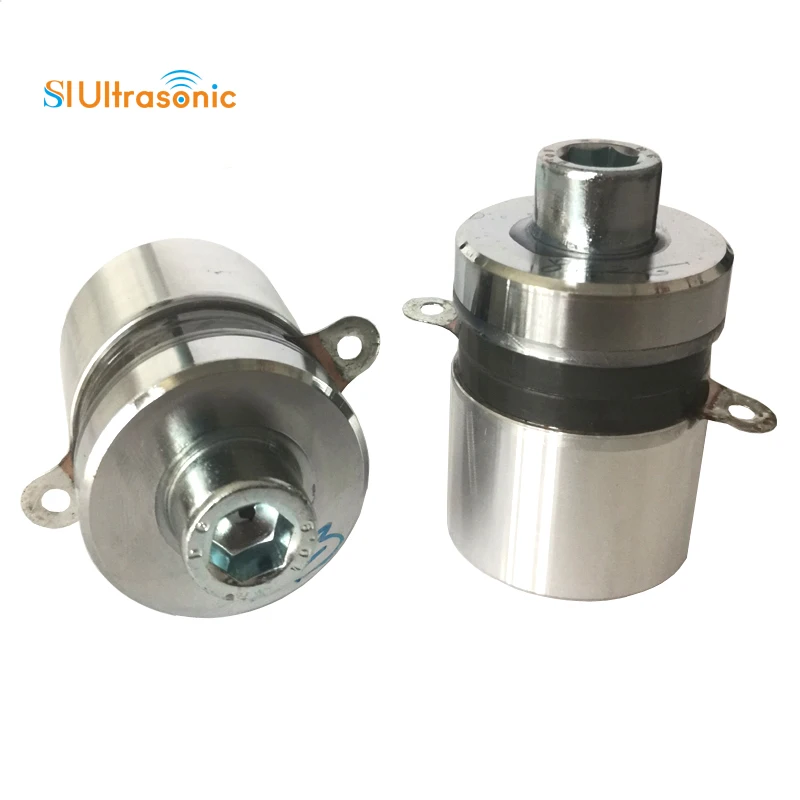

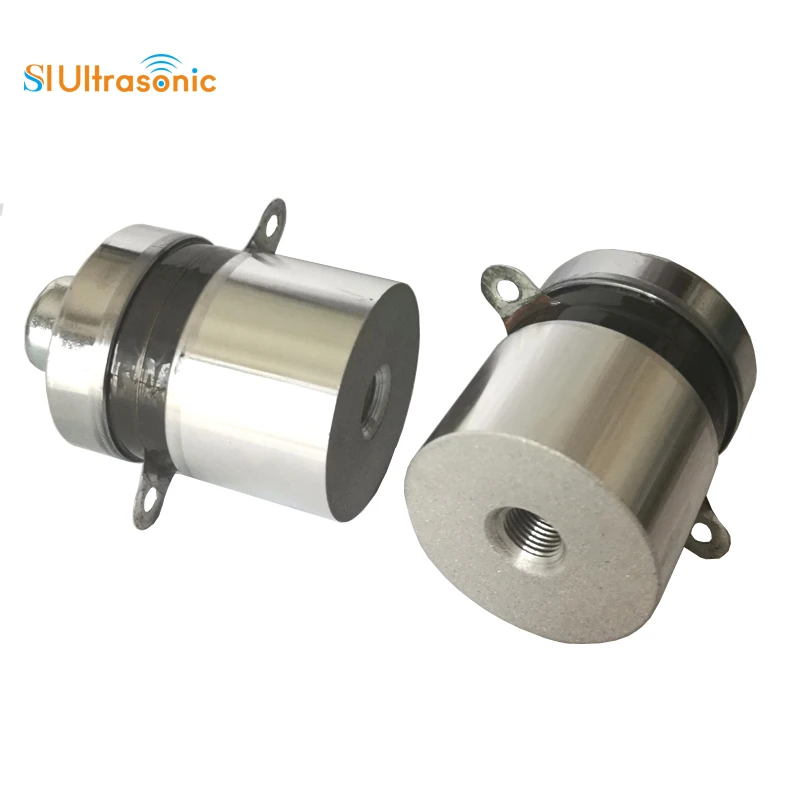

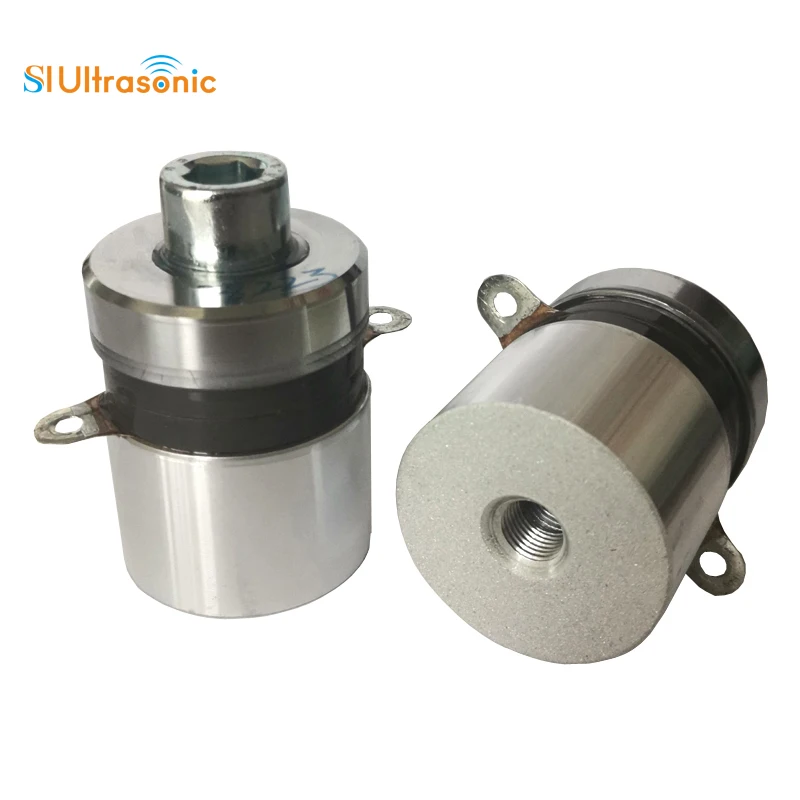

Ultrasonic transducer also called ultrasonic vibrator, which can convert high frequency electrical energy into mechanical energy effectively. Ultrasonic cleaning transducer is the core component of ultrasonic cleaning machine. It consists of a radiation head, an electrode sheet, a rear metal cover, a pre-stressed screw (screw), a piezoelectric wafer, and an insulating tube. The characteristics of transducers depend on material selection and manufacturing process.
How to choose the ultrasonic frequency?
1) Below 40KHz, generally used for cleaning ordinary industrial parts or more dirt, such as hardware machinery parts to remove oil and wax and other work. (The more dirtier and harder to clean, need to choose the more lower frequency)
2) Above 40kHz, mostly used for precision cleaning , such as optical/optoelectronic glass devices and semiconductor materials/devices and other parts of precision cleaning.
1. How to connect ultrasonic transducer with pcb board?
&: Out + : Connect the ultrasonic transducer's positive.
&: Out -: Connect the ultrasonic transducer's negative.
&: AC: connect the power supply.
2. If you have the following questions. pls contact with us as soon as possible, we will help to solve them in time.
&: The goods were damaged after receiving.
&: Loss of the goods.
&: Want to learn more information about how to build ultrasonic machine.
&: Have the questions for our service.
&: Other helps.
We don't just give you a quote,we also offer you quality.services and future business prospects.
SL Ultrasonic have more than 15 years of experience in the ultrasound industry.
We will provide you professional information and operation service at any time.
Want to learn more about Ultrasonic cleaning system, Please contact us.
