Description

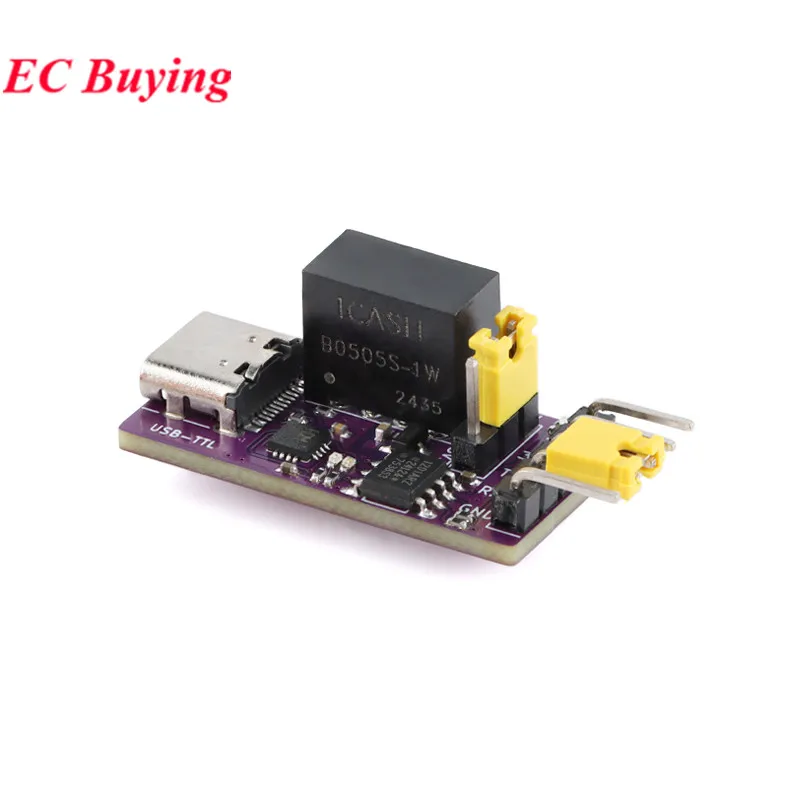

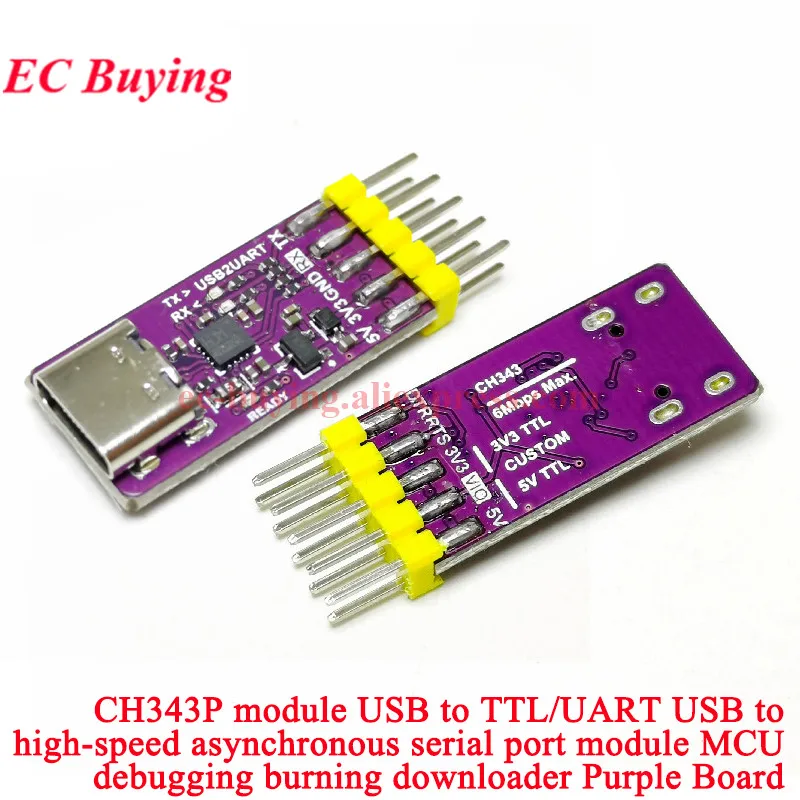

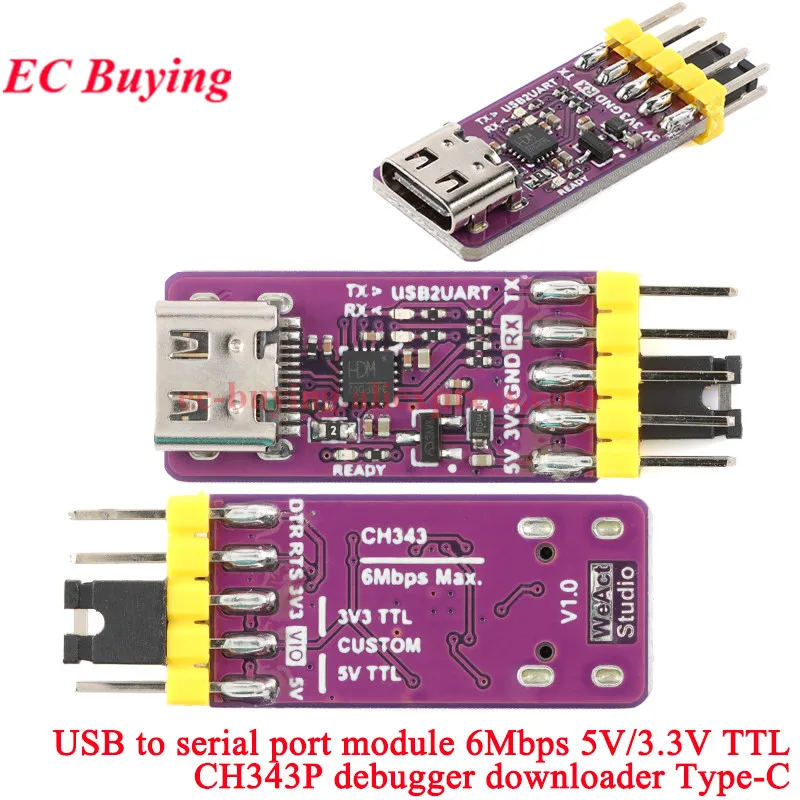

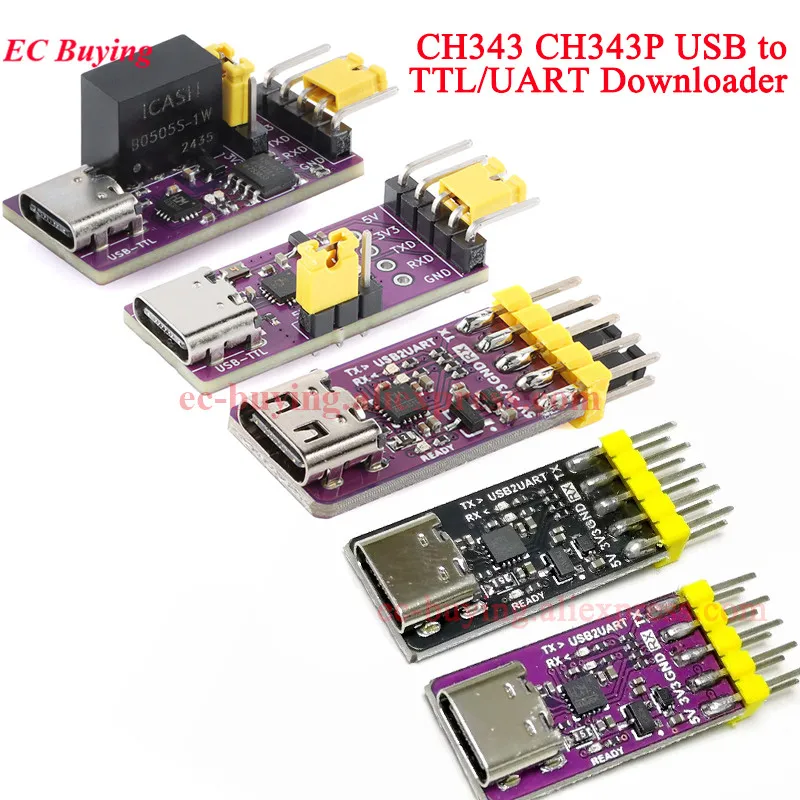

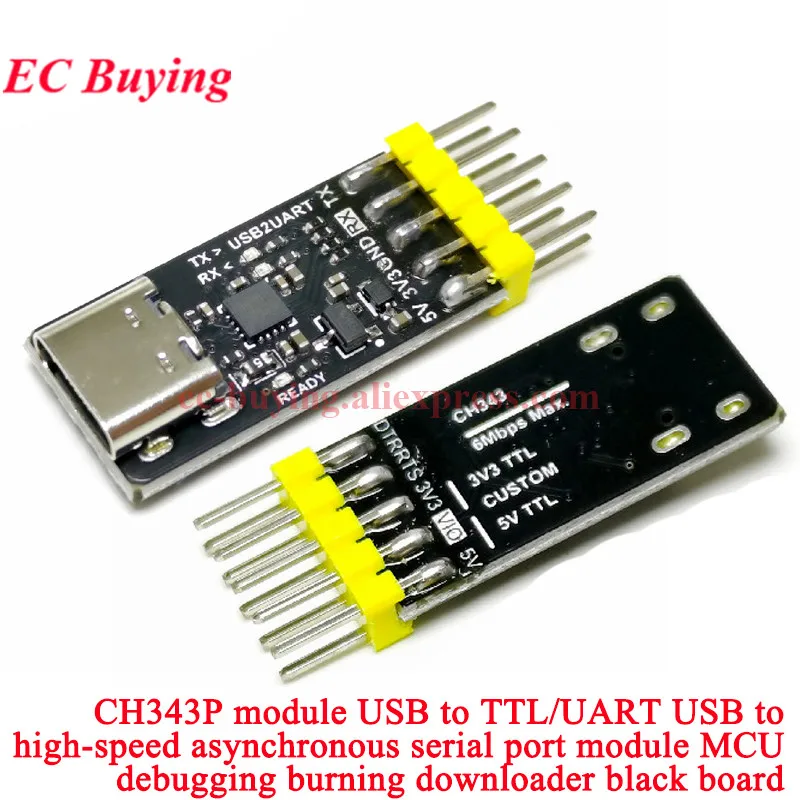

USB to serial port module based on CH343P, equipped with RTS and DTR
Full speed USB device interface, compatible with USB 2.0.
Supports communication baud rates ranging from 50bps to 6Mbps.
Optional 3.3V/5V TTL level input and output, while supporting external target level setting, with a level range of 1.8V~5V.
The operating system that supports rabbit installation has built-in CDC class drivers or multi-functional high-speed VCP vendor drivers.
CH343P has built-in EEPROM and can configure parameters such as chip VID, PID, MAX current value, manufacturer and product information strings.
The chip has a built-in Unique ID (USB Serial Number).

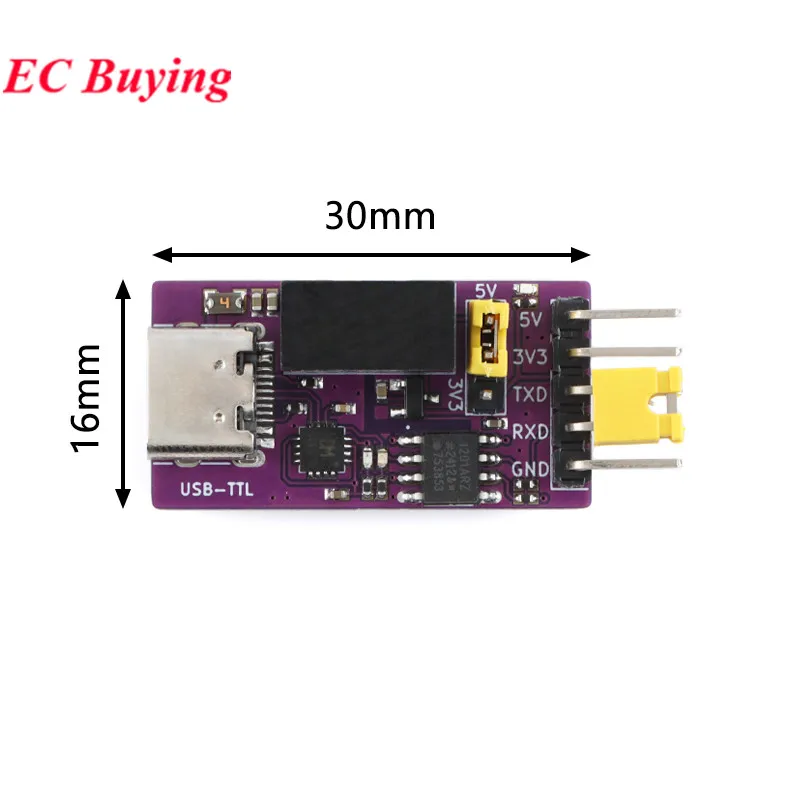

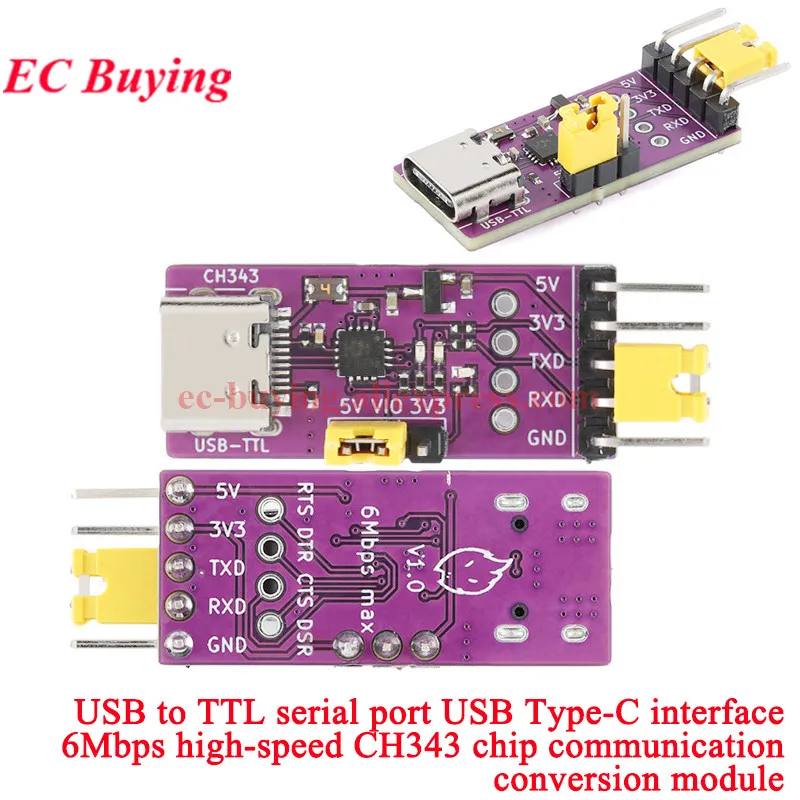

Level selection
When VIO is connected to 3V3 through a short-circuit cap, the TX/RX/RTS/DSR level is 3.3V.
When VI0 is connected to 5V through a short-circuit cap, the TX/RX/RTS/DRR level is 5V.
When VIO is connected to the target device power supply, TX/RX/RTS/DRR is determined by the target device power supply, and the level range needs to be between 1.8V and 5V.
4.5V/3V3 does not have anti backflow function. When the target device is powered on, it cannot be connected to 5V or 3V3. Common ground is sufficient.
