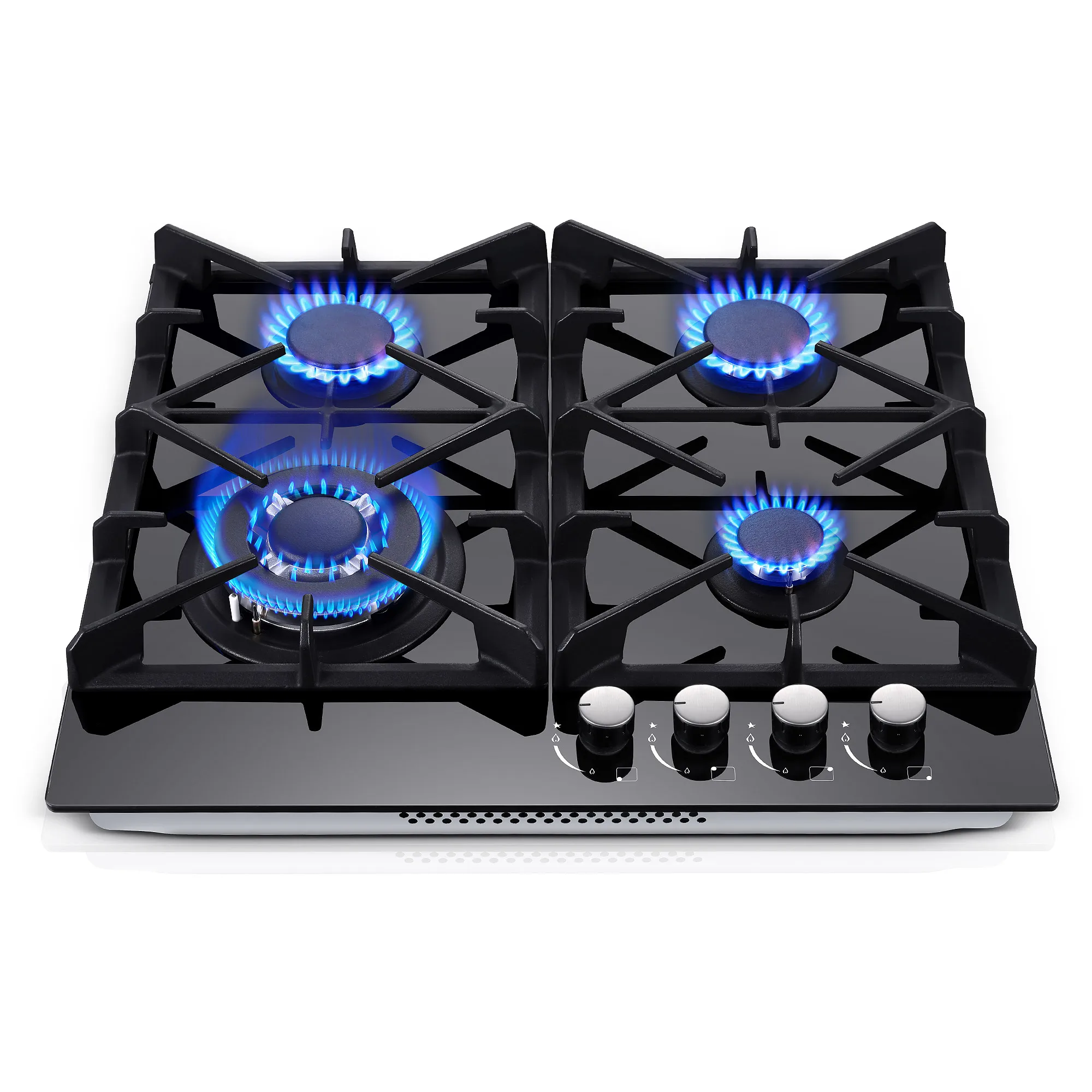

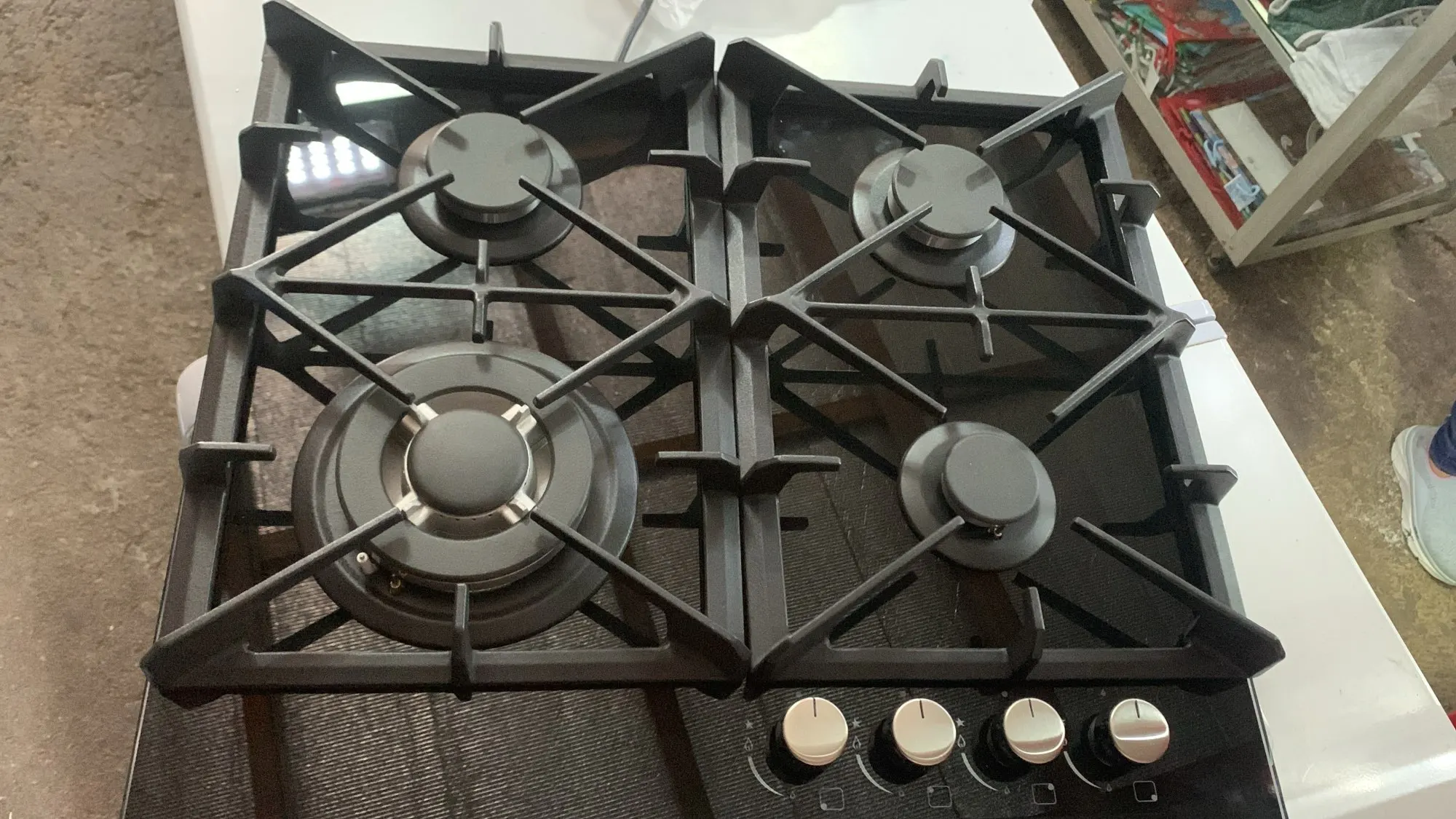

24 Inch 4-Burner Gas Cooktop | Dual Fuel NG/LPG Convertible | Thermocouple Protection & Built-in Design | Tempered Black Glass

Description

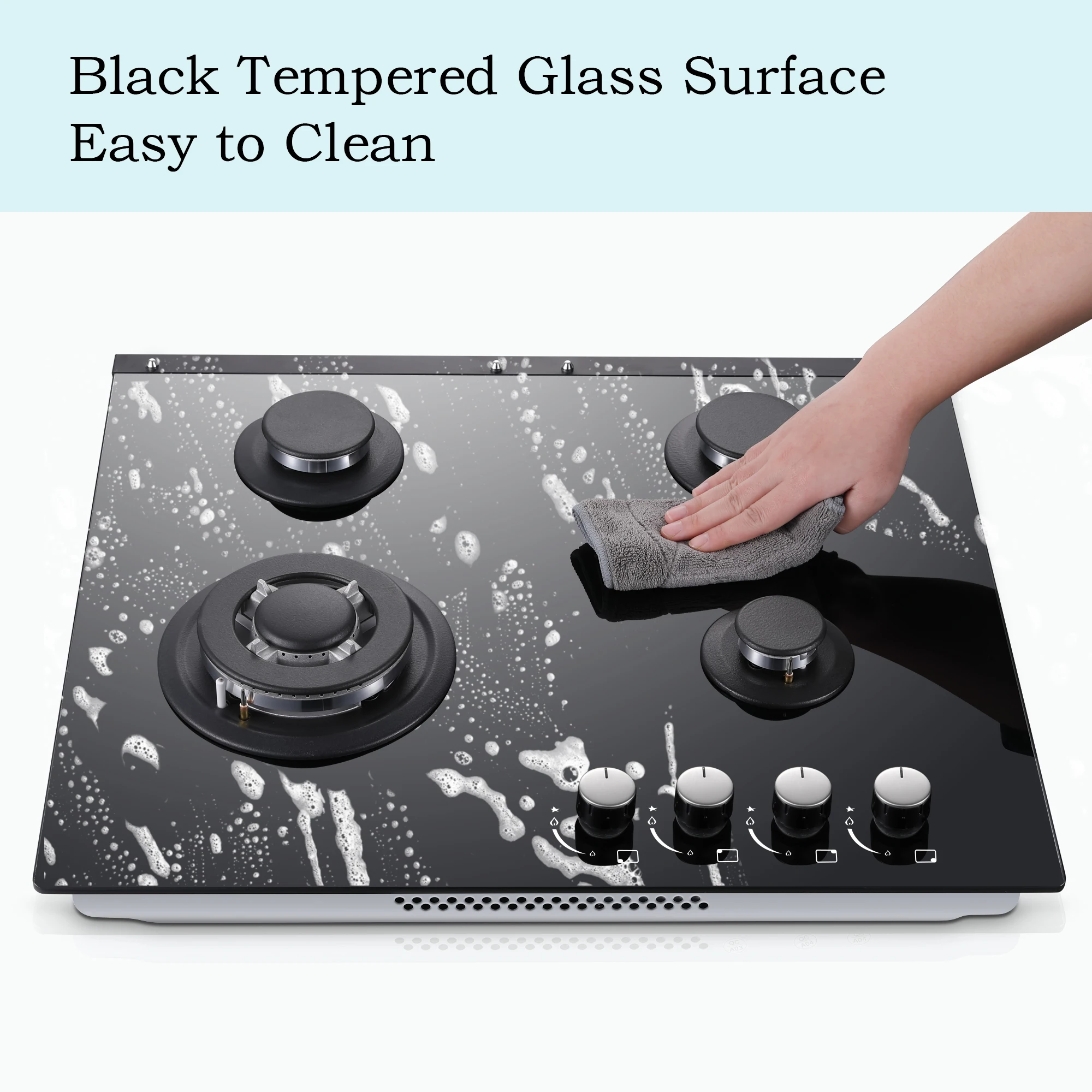

Gas Cooktop 24 inch, 8mm
Tempered Glass in Black

Fuel type: Natural Gas (NG) are preset and can be replaced
with Liquefied Petroleum Gas (LPG) nozzles.

Please note that:

1) Extra LPG Nozzles included in the pageage, the natural gas
pressure regulator and the gas pipe are NOT included.

2)It is recommended that gas stove be installed and tested
by professionals.

Old-style cooktops usually use plastic at the back side, which
is easy to be damaged by aging. Back sides of our gas
cooktop is made of stainless steel, it is stronger, more anti-
wear and safer and has a longer service life.

-Pan Support
Materiat:Heavy-Duty
Cast Iron

-Control Type: Bakelite
Knobs Control

-Ignition Type: Electronic
pulse ignition

-Voltage: 110v, 3-prong
plug

-Cable Length: 4.5 Feet

-Installation Type: Built-

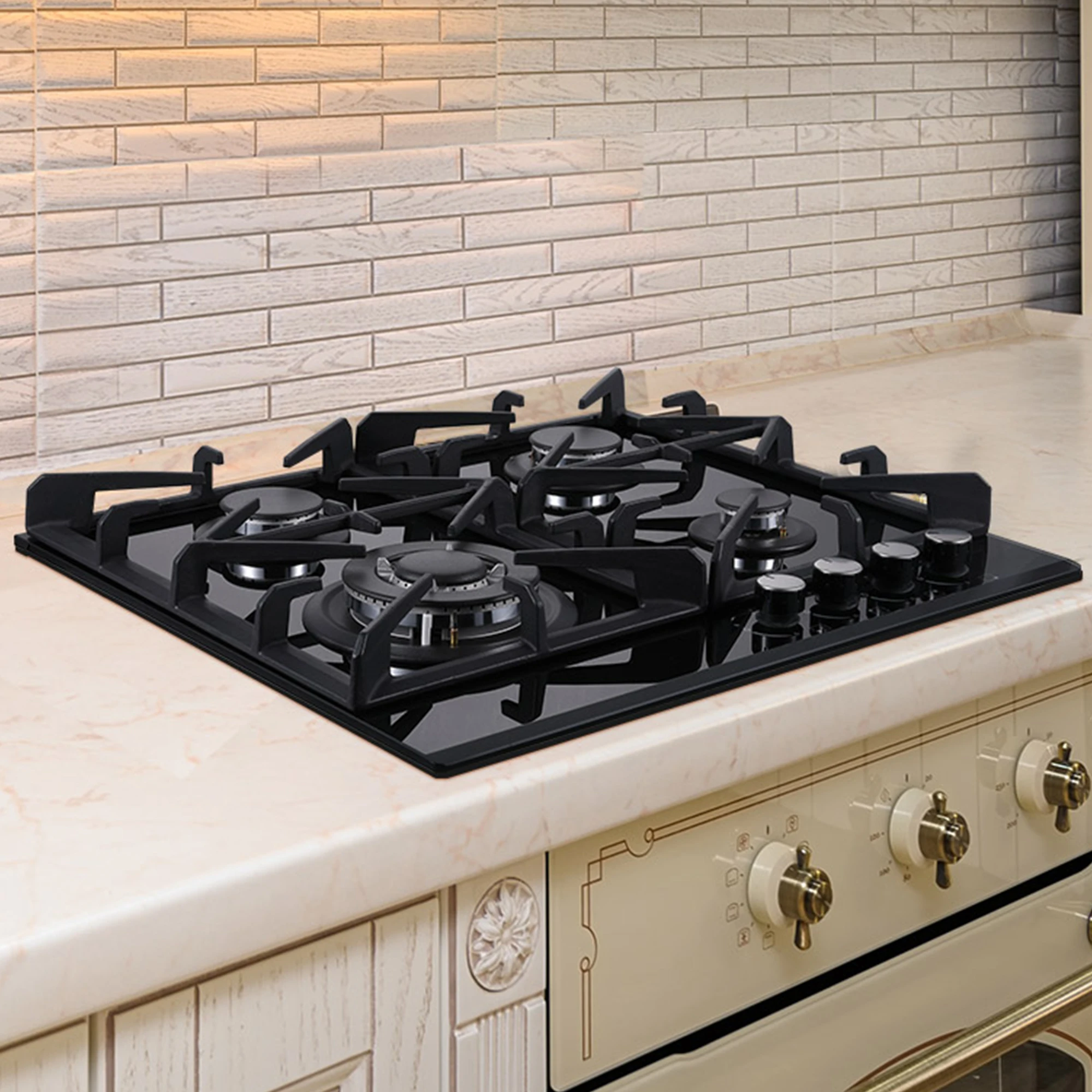

inInstallation of built-in gas cooktop

This gas cooktop is for bulit-in use only, please verify the gas cooktop is the right size for you.

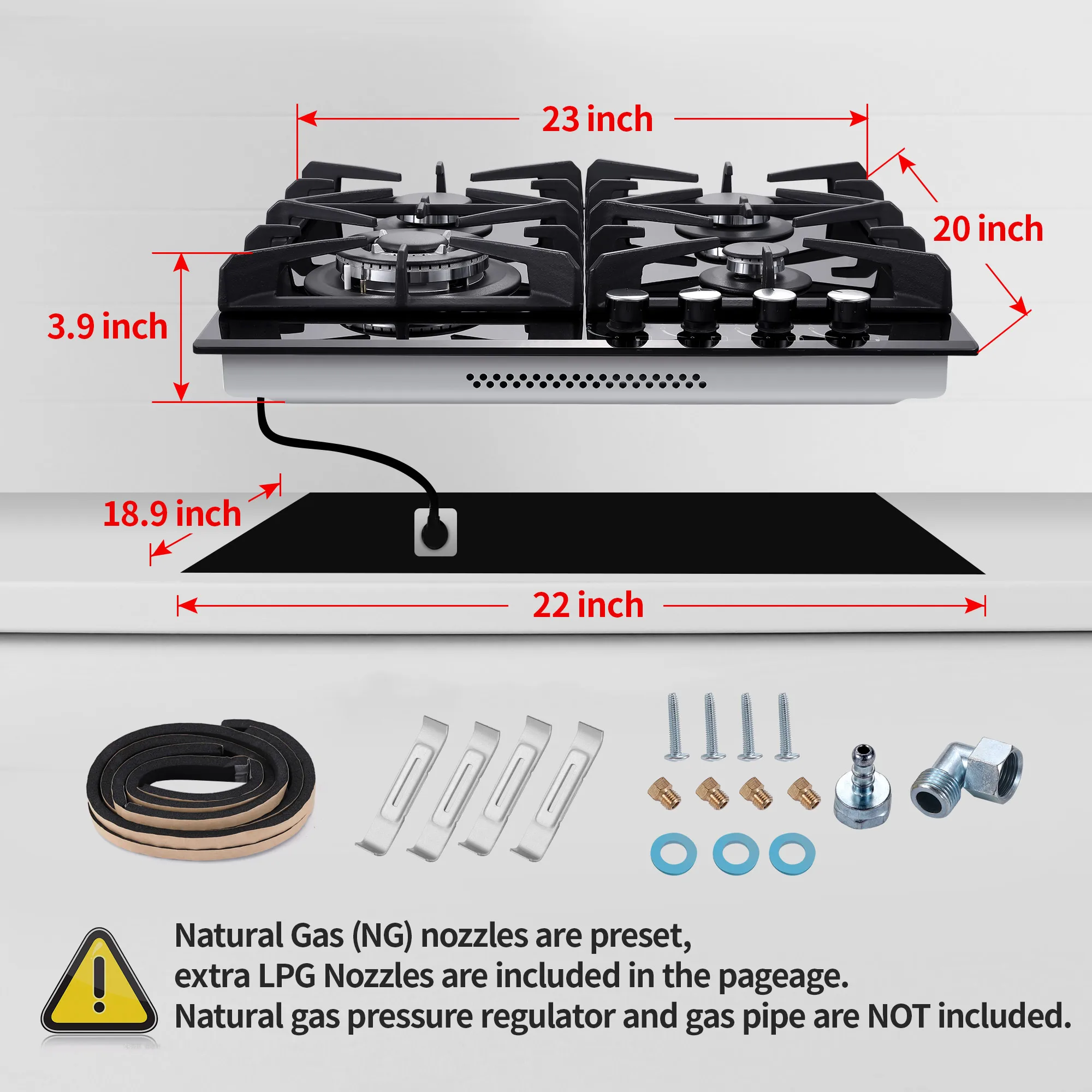

Product Dimensions: 23.0" W x 20.1" L x 3.9"H

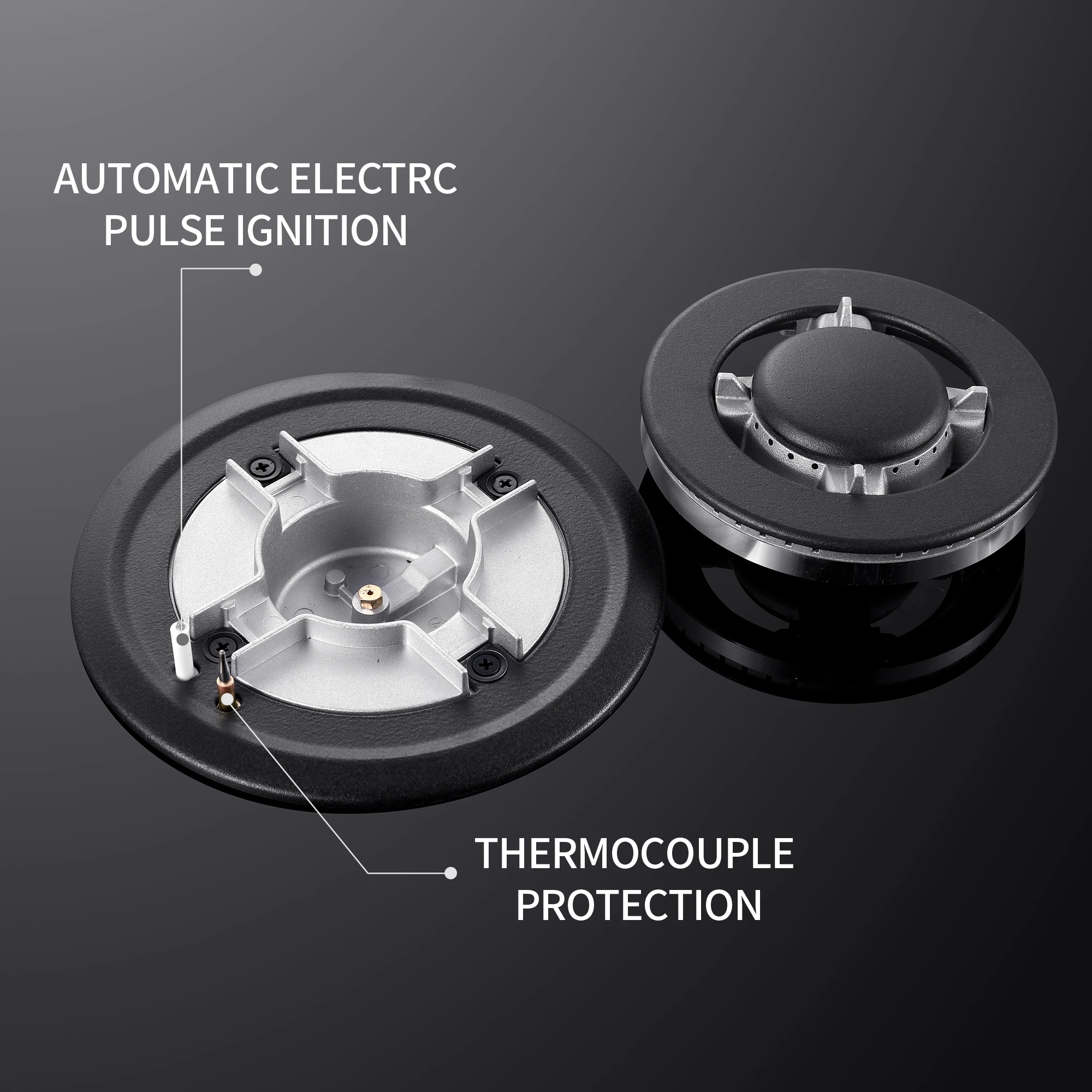

Cut out Dimensions: 22" Wx 18.9" LTHERMOCOUPLE PROTECTION

Every burner unit is installed a thermocouple
flame-out failure system (FFD), will
automatically cut off the gas supply when the

flame goes out unexpectedly, to avoid gas

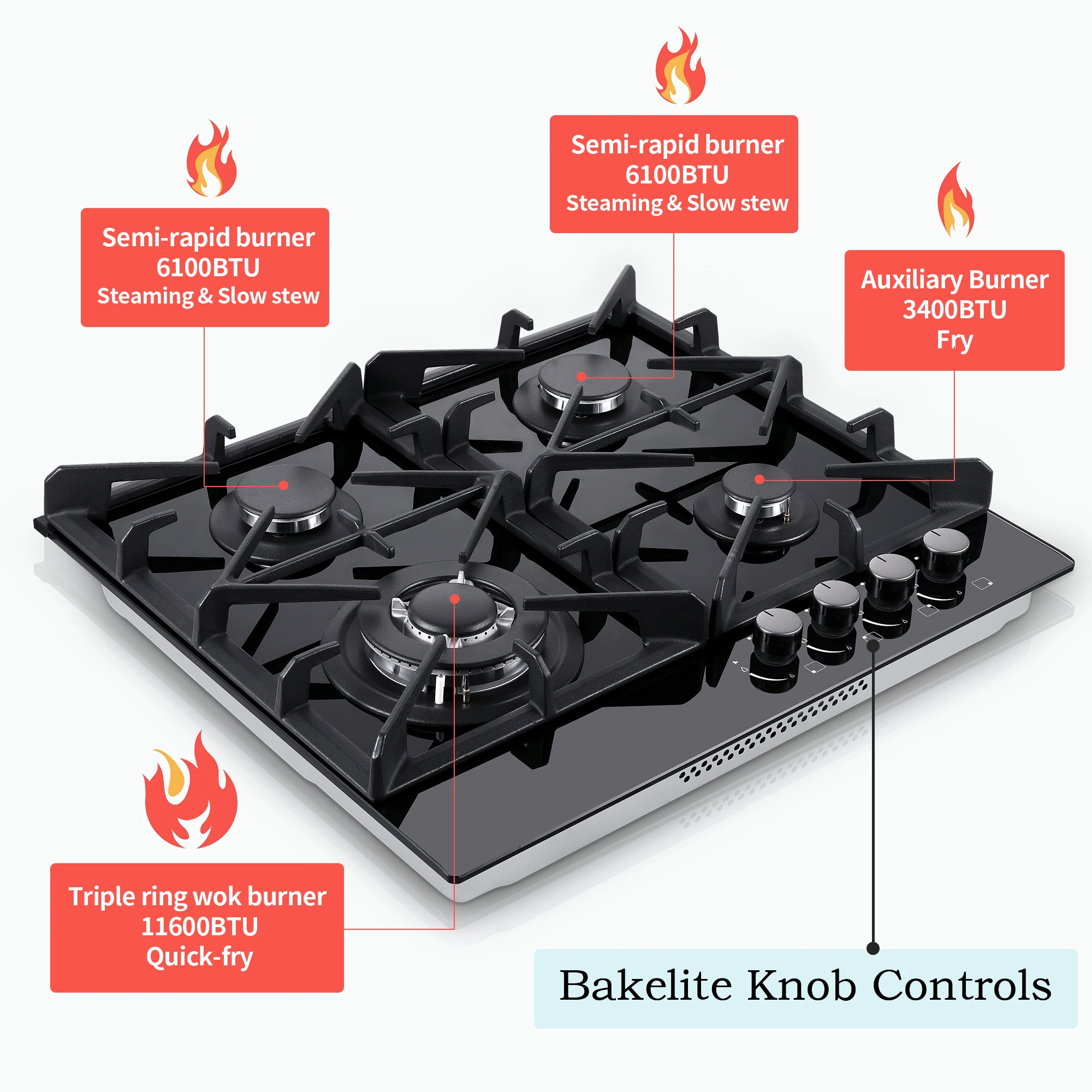

leakage.BAKELITE KNOB CONTROLS

Melt-proof and anti-scalding bakelite knob
controls,with child protection lock,need to
press and rotate at the same time to ignite,

preventing children from accidentally
touching.HEAVY-DUTY CAST IRON POT STAND

One-piece heavy cast iron grate, easy to
assemble and remove, will not deformed. The
unique eight-claw structure is stronger and

more stable than the four-claw and six-claw
grate, can support the pot firmly, avoid letting
the pan slip off.For a correct installation, the following precautions must be followed:

a) Fixing fittings (brackets, screws) are provided to place the gas cooktop on work top, measure 0.79 to 1.58 inch in thickness

b) In the event the gas cooktop is not installed on a built-in oven, a wooden panel must be inserted for insulation.This panel must be placed at least 0.79
inch distance from the bottom of cooktop.

c) When installing the gas cooktop on a built-in oven, the oven should be placed on two wooden strips; in the case of a joining cabinet surface,

remember to leave a space of 1.78 x 22 inch at least from the back side.
