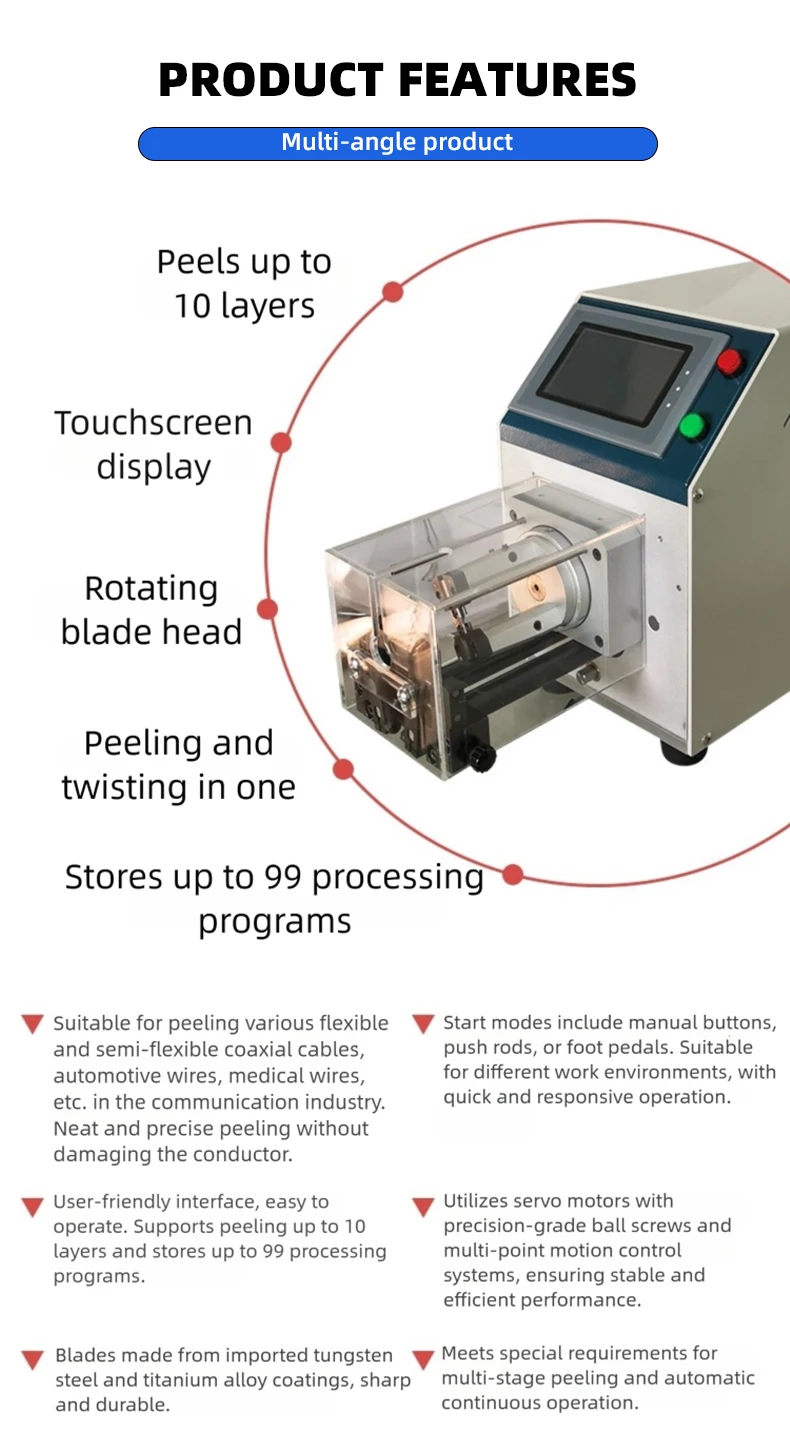

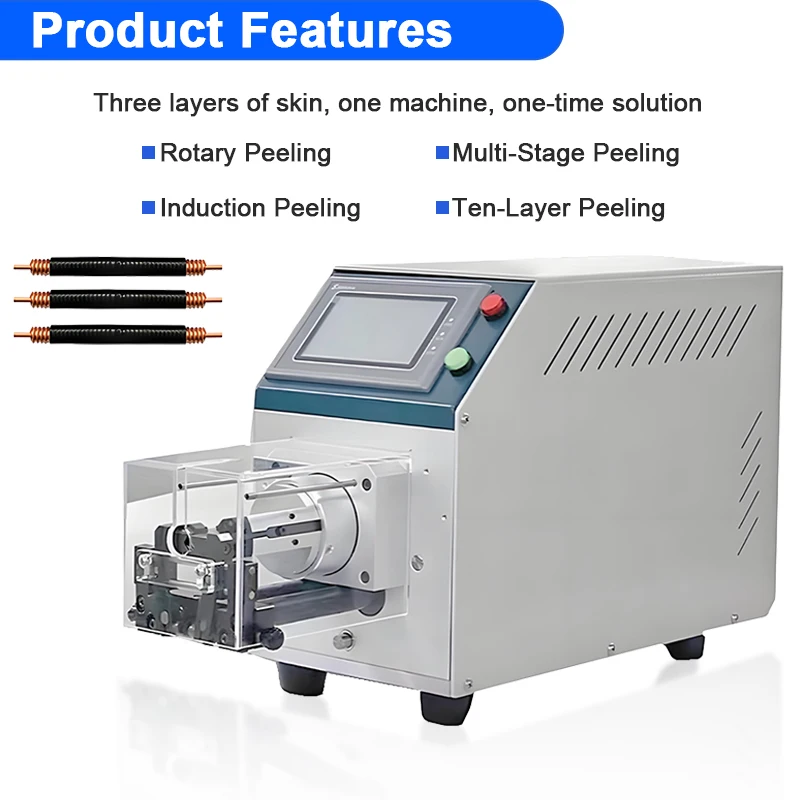

Product Description

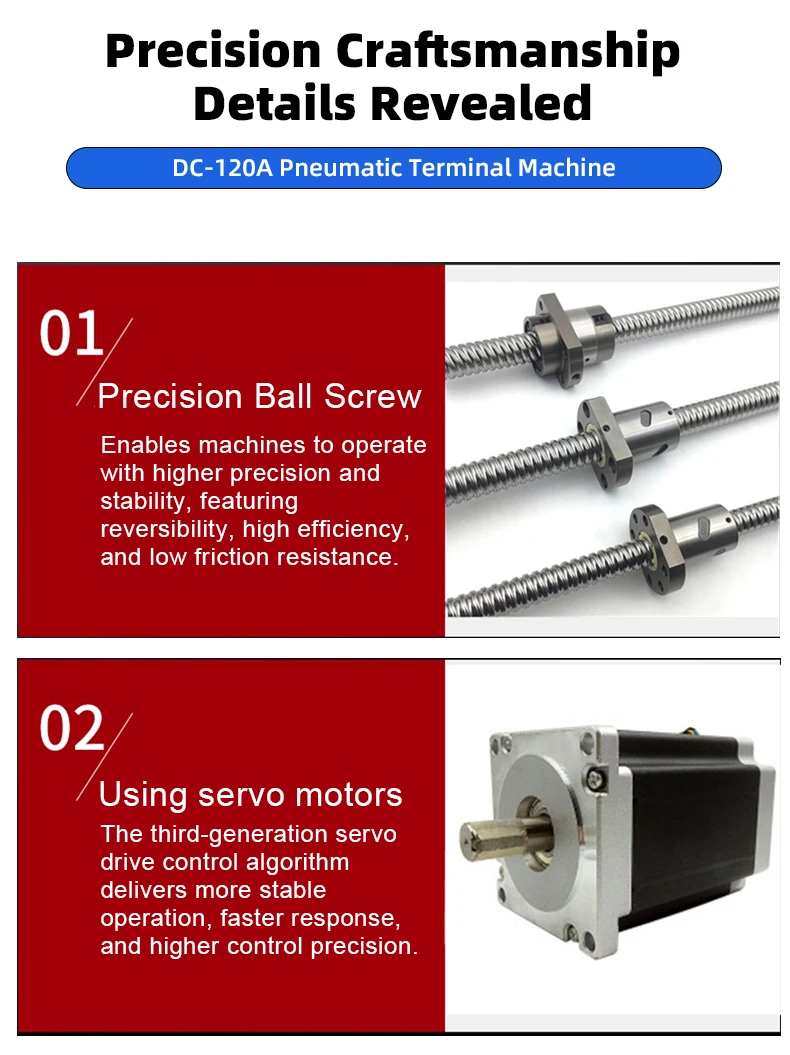

01. Precision ball screw
It enables the machine to operate with higher precision, greater stability, reversibility, high efficiency, and low frictional resistance
02. Servo motors are adopted
The third-generation servo drive control algorithm operates more stably, responds faster and has higher control accuracy

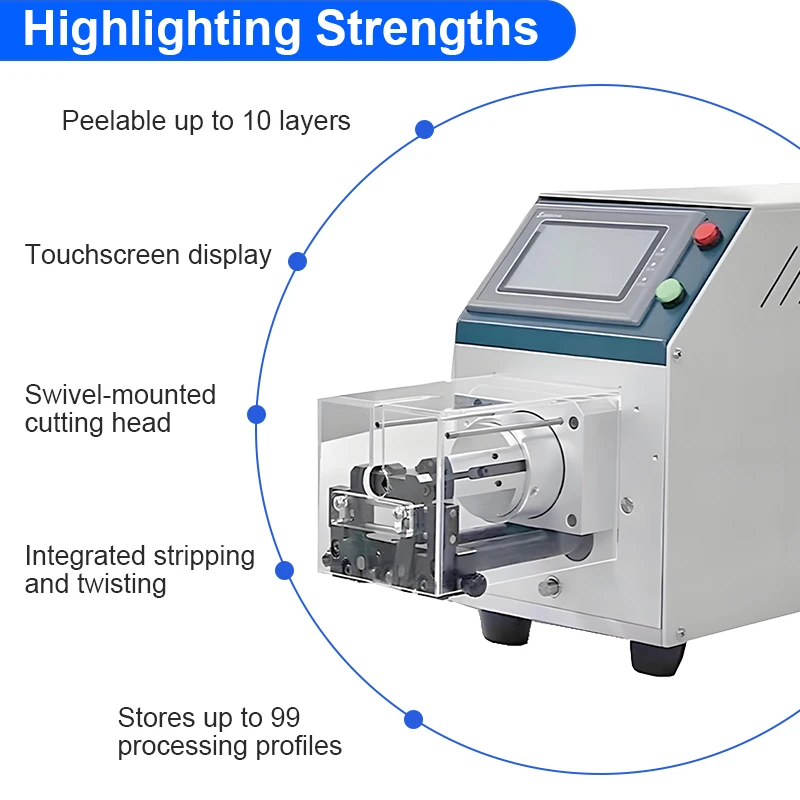

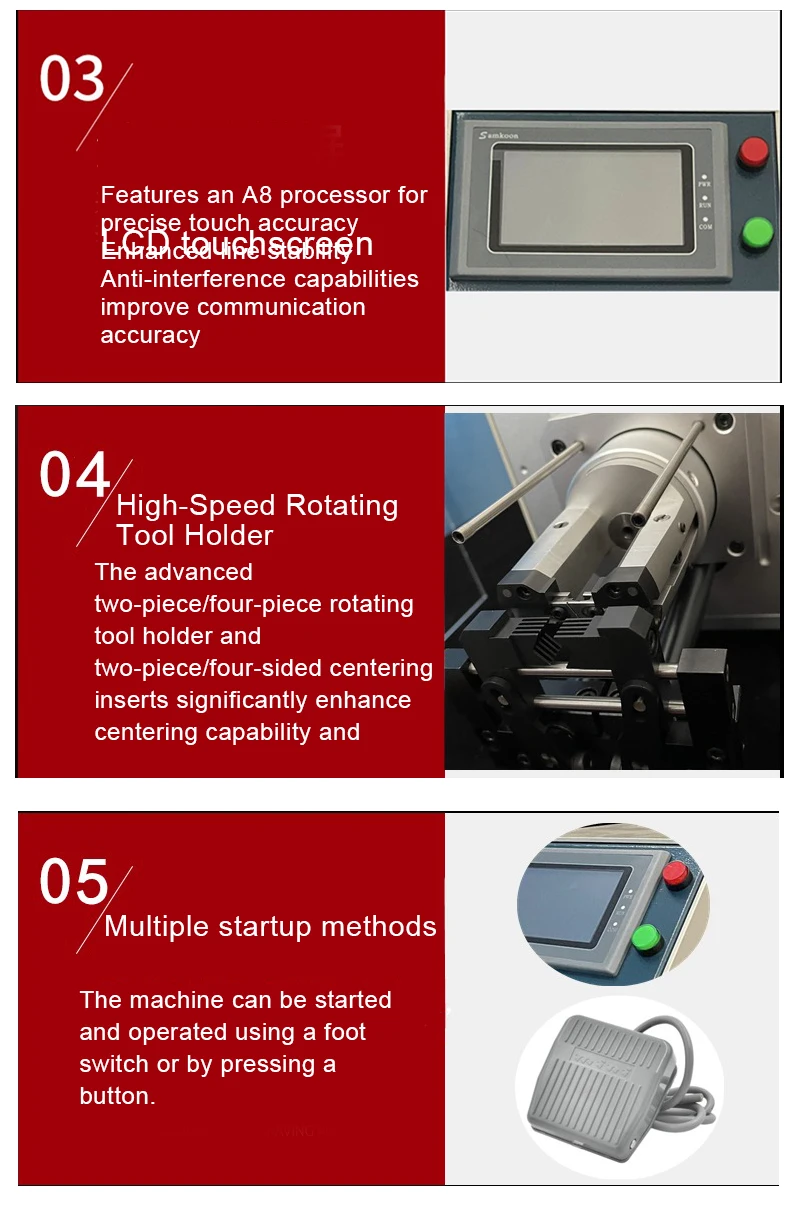

03. Liquid crystal touch youdaoplaceholder6
It adopts the A8 processor, with accurate touch precision and anti-interference, enhancing the accuracy of communication, faster computing speed, lower power consumption and more stable operation
04. High-speed rotating tool rest
By adopting advanced two-piece/four-piece rotating tool rests and two-piece/four-sided centering plates, the centering ability and processing capacity have been greatly enhanced
05. Multiple startup methods
The machine can be started and operated by a foot switch or by a button

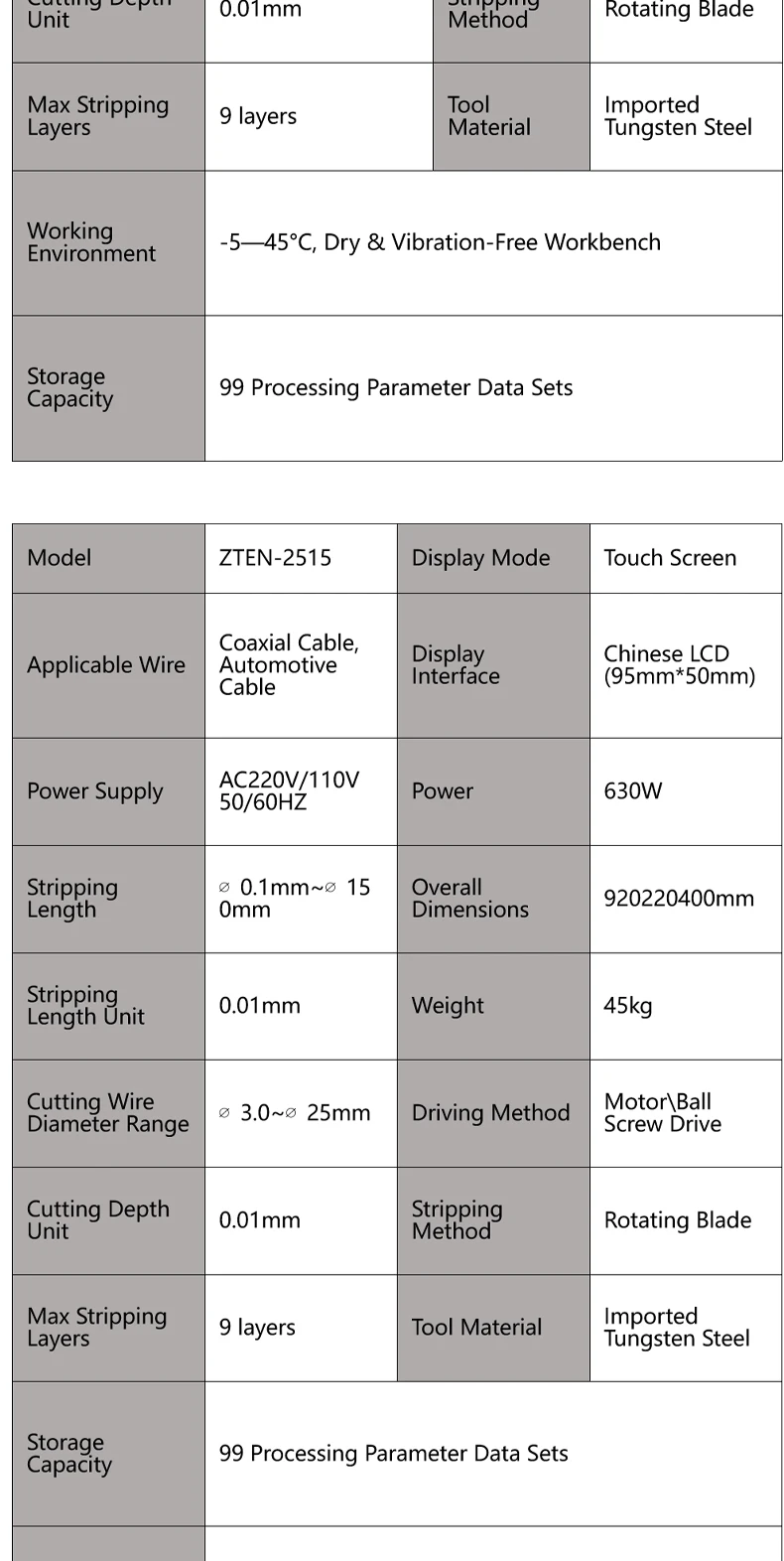

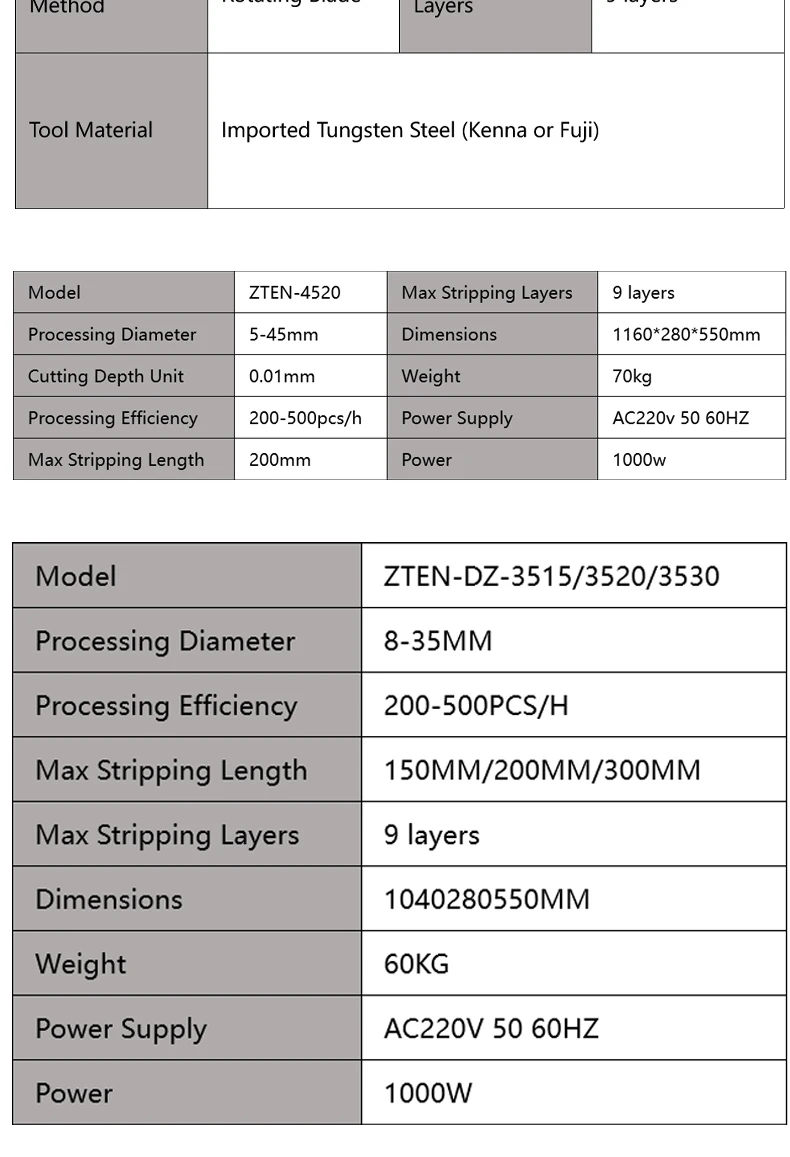

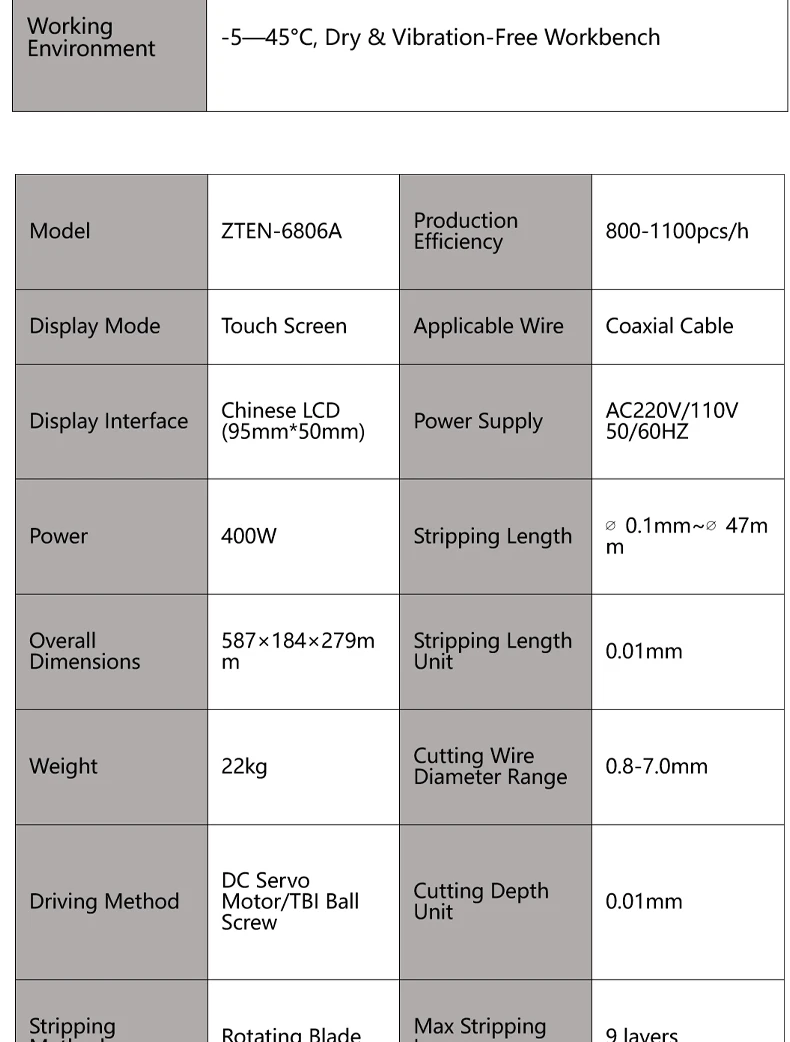

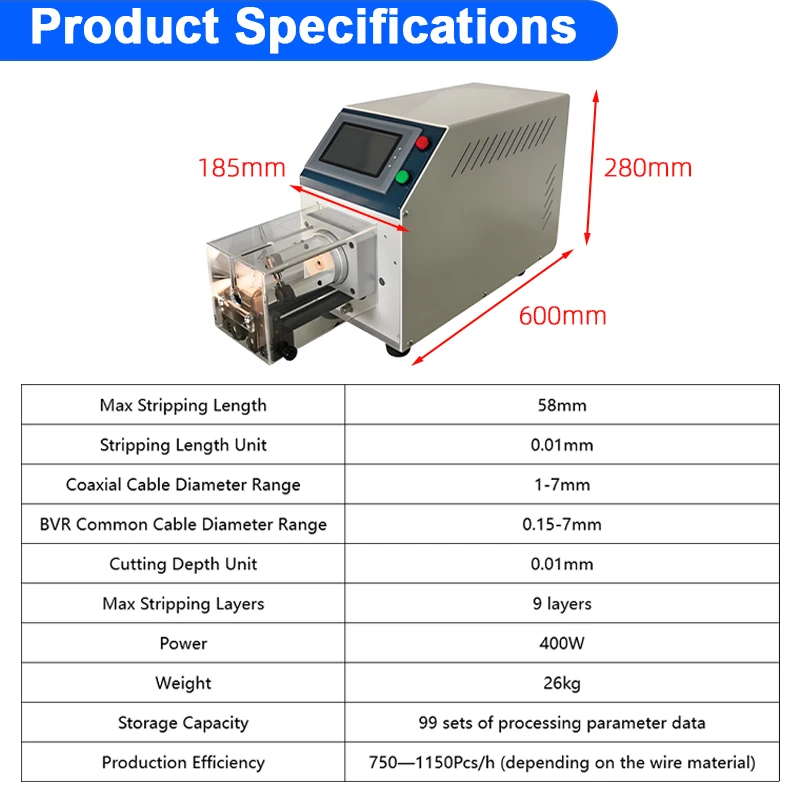

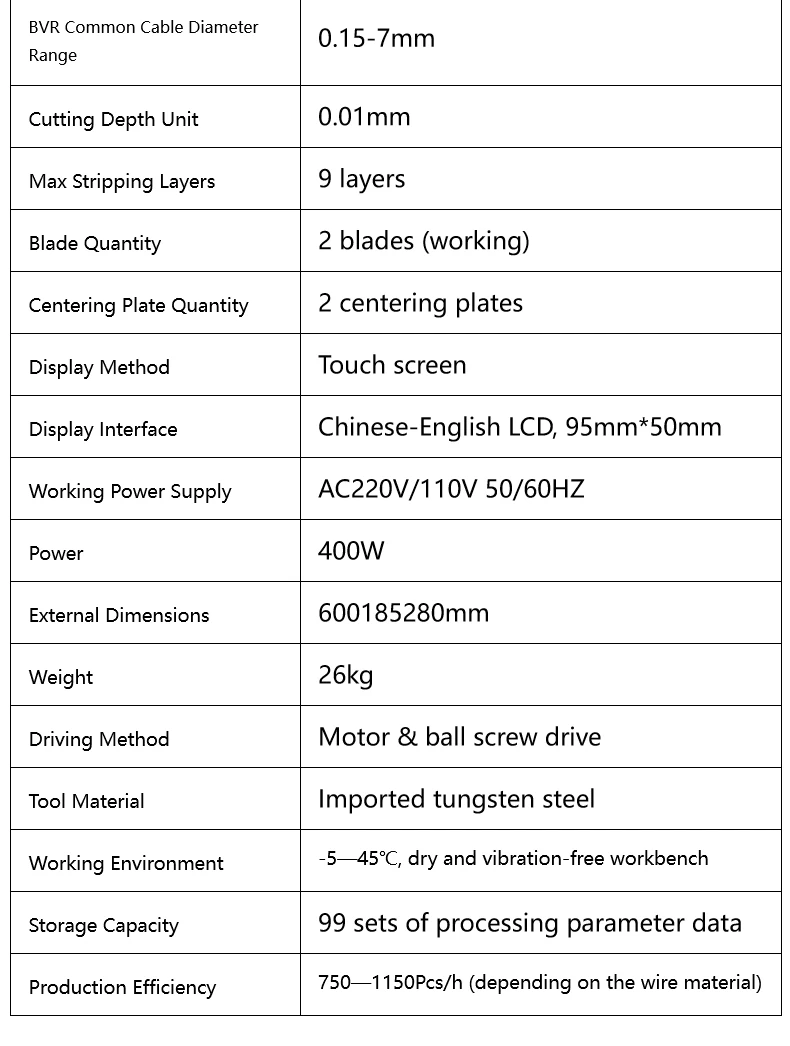

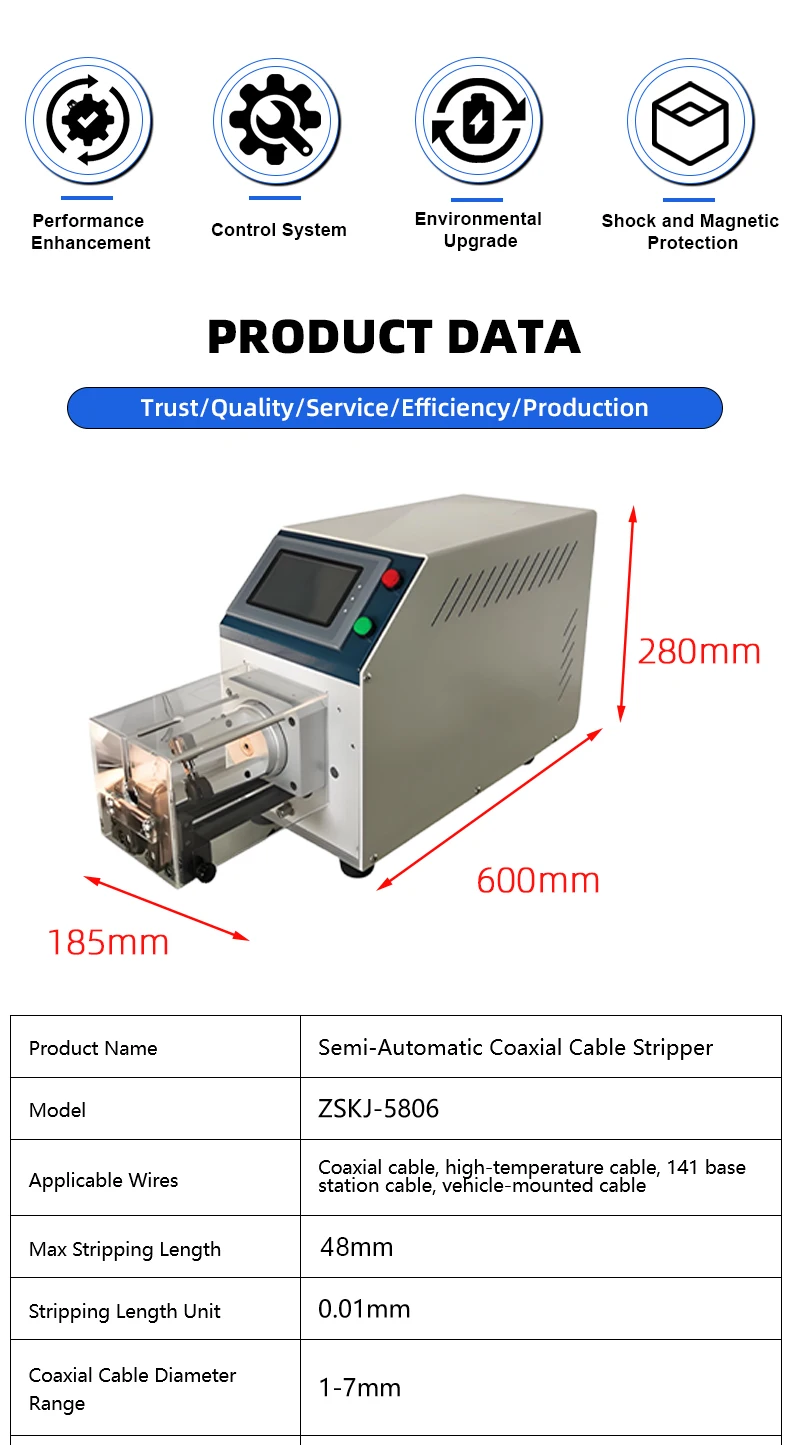

Product parameters
Max Stripping Length58mm
Stripping Length Unit0.01mm

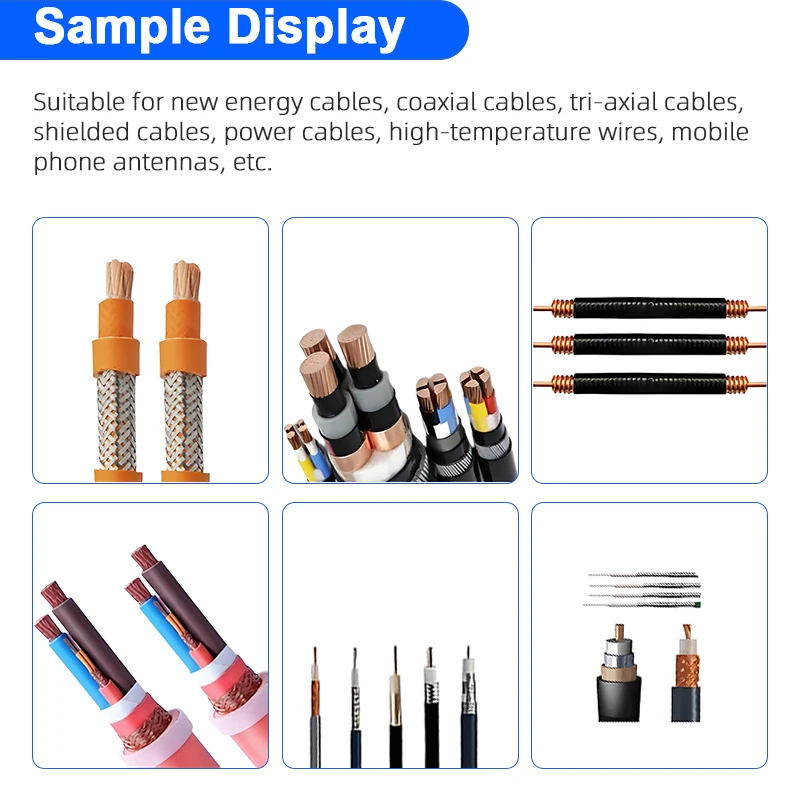

Coaxial Cable Diameter Range1-7mm
BVR Common Cable Diameter Range0.15-7mm
Cutting Depth Unit0.01mm
Max Stripping Layers9 layers
Power400W
Weight26kg
Storage Capacity99 sets of processing parameter data
Production Efficiency750-1150Pcs/h (depending on the wire material)
